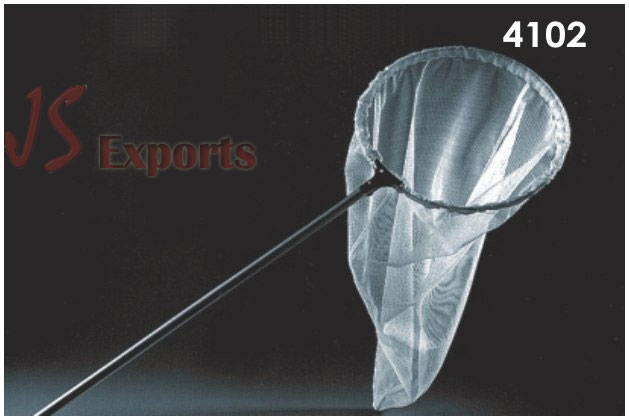

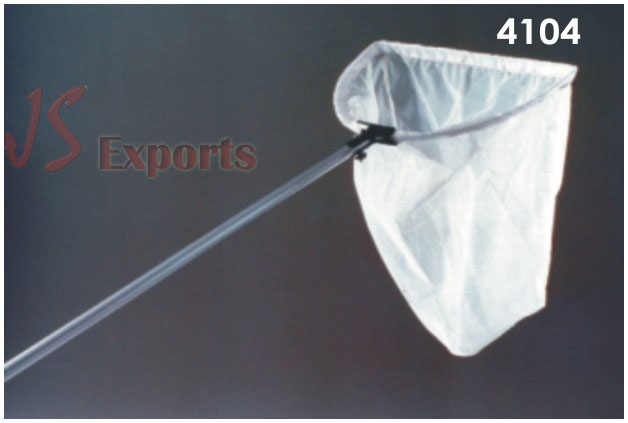

Strongly built for sweeping up aquatic insects and as general utili ty aquatic net. Removable, rigid D shape frame 300mm across silk bolting mesh bag with end reinforced with metal ferrule and with a strong grip.

NOTE : Spare bag for above required to replace torn and old one can also be supplied at extra cost on request.

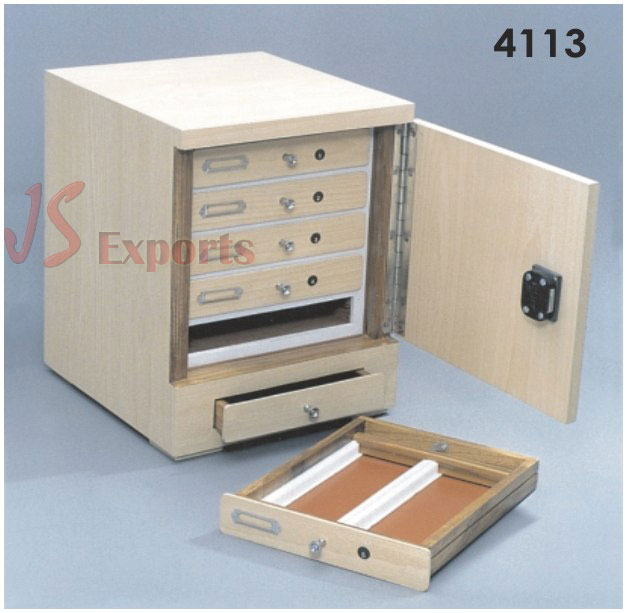

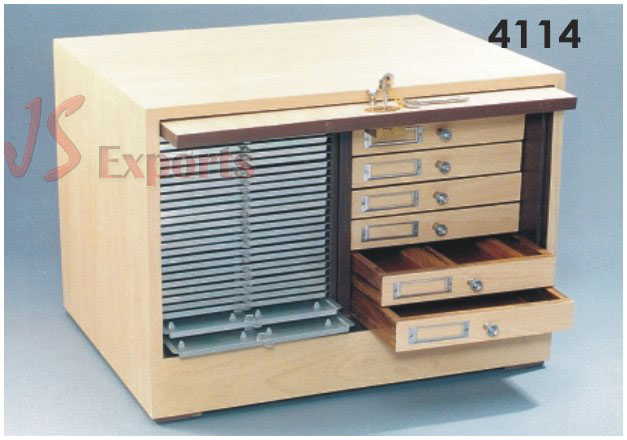

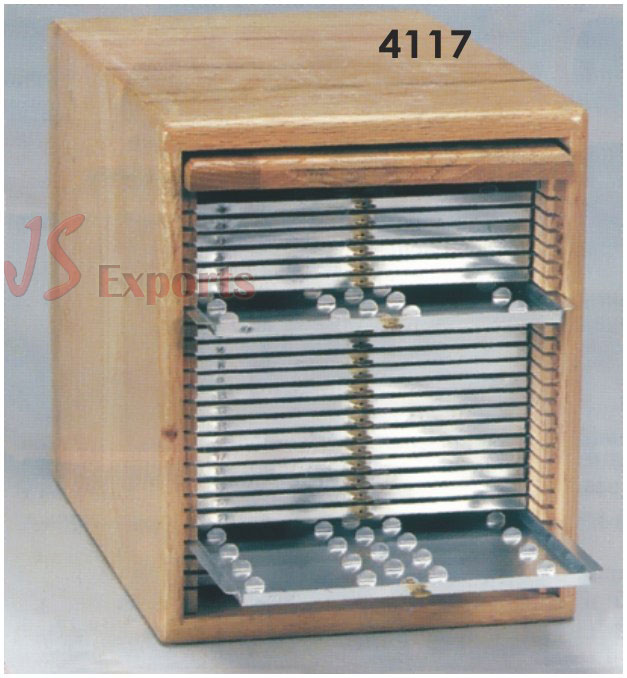

The cabinet is clad in laminated sheet. Dust proof door with lock. The drawers are made of teakwood having wooden/plastic grooves each serially numbered, to keep slides vertically, bottom lined with velvet, provided with index card frame and puller knobs. Lever lock provided to prevent drawer taken out accidently. An extra drawer with index cards. Moisture proof lacquered finish.

Slide Capacity :
(a) 500
(b) 1000
(c) 2000
(d) 5000
(e) 10000
(f) 15000

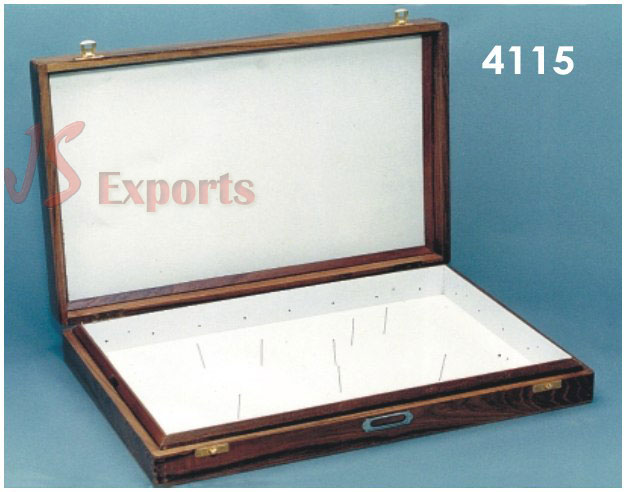

Seasoned wood frame with finger joints. Plywood bottom. Non-rattling glass in wooden frame top. Bottom has thick papered cork-sheet for pinning.Provided with two brass clips and index card frame. Moisture proof lacquer finish.
Sizes :
(a) 600 x 450 x 75mm
(b) 450 x 300 x 62mm
(c) 375 x 250 x 62mm
(d) 300 x 225 x 62mm

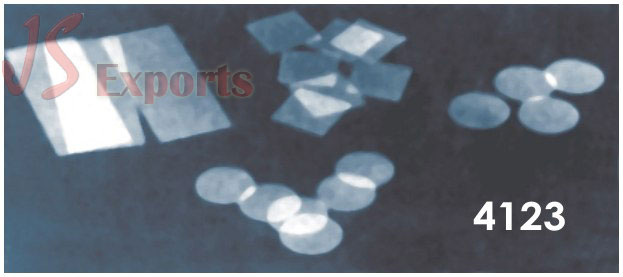

Cover glasses No. 1. Pack of 10 gms
(a) l6mm dia
(b) l8mm dia
(c) 22mm dia
(d) 18 x l8mm
(e) 22 x 22mm

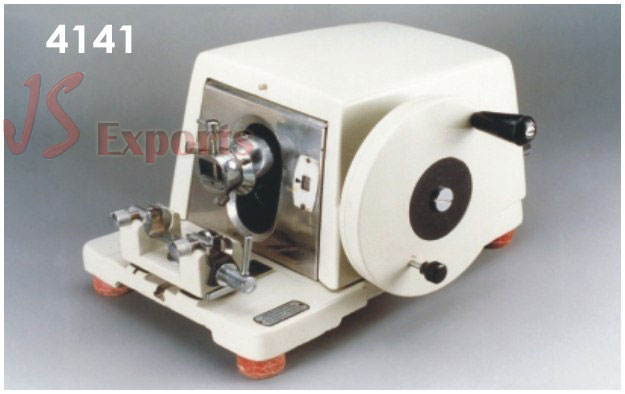

It is of immense use for Medical Institutions, Research Laboratories etc. and gives very good results for cutting thin sections. It is mounted on a heavy cast iron base to ensure rigidity and long life. The housing gives maximum protection to the mechanism against dust and paraffin waste etc. It is driven by handle which can be locked in position. The cutting sections obtained by mechanically operated crank can be adjust ed in steps of 1u to 25u by means of a knurled knob on the front of the instrument. The efficient ball and socket clamp renders possible to interchange specimen clamp and paraffin stage with a single motion. The instrument is equipped with a r otating knife, honing plate, three object holders and oil-can.

SPECIFICATIONS :
Feed adjustment: 1-25 micron (in step of 1 micron).
Opening of object stage: 30x15mm Overall height: 260mm
Size of case: 500 x 400 x 350mm Weight: 30Kg approx.

A heavy base with hinged cover for protecting the interior mechanism, and knife holder. With every complete revolution of the drive wheel, the feed panel engage the teeth of rachet wheel which advances the object holder through cone and inclined plane mechanism, tissue sections can be cut down to even 1 micron. A safety device automatically disengages the feed mechanism at the end. Feed indicator is in front and feed setting is at the back of Microtome which sets 1 to 50 micron. A razor 120mm made from High carbon steel and tested for Micro structure is supplied with instrument. There is an arrangement to tilt angle of the razor adjustable up to 30º on a reference scale.

TECHNICAL FEATURES :
Feed adjustment: 1-50 Micron (in step of 1 micro)
Total feed excursion : 28mm opening of object clamp.
Hall and flange type : 37 x 25mm,
Overall dimensions : 400 x 250 x 175mm
Weight: 25 Kg. approx.

Fume exhaust hoods are designed to contain and exhaust toxic, obnoxious or otherwise harmful gases, vapours, mist etc. to protect personal and equipment. A motor driven blower creates negative pressure within the chamber extracting the contaminated air from work area and expel it into the atmosphere. The hood is ventilated to the air drawn for inside the Laboratory which is used effectively for thorough sweep-out of work chamber. Fabricated out of best quality, thick weather-resistant Duro-board clad in mica Lamination from outside, inner chamber finished in chemically resistant Epoxy paint. Work surface is made of steel. An up & down sliding Sash mad of thick seasoned Teak-wood and mounted with heavy glass is duly polished. Fluorescent tubes or economical compact fluorescent light (CFL) with built-in Magnetic ballast are fitted for lighting the work area. A gas tap and a electric plug is also provided. A working tray made of asbestos or Stainless Steel is also supplied with the Equipment. A work bench/Table (optional) to install the equipment any where in the lab. Can be supplied. The work bench is fabricated out of square steel pipe or hard wood and has a cupboard and a drawer. It is nicely painted.

Optional
(i) Exhaust ducting dia 3" 4" 5" rates per running it.
(ii) Ereon charges : negotiable
(iii) CFL-11W/220V, light 75W life-10,000 burning hrs. with magnetic ballast extra.

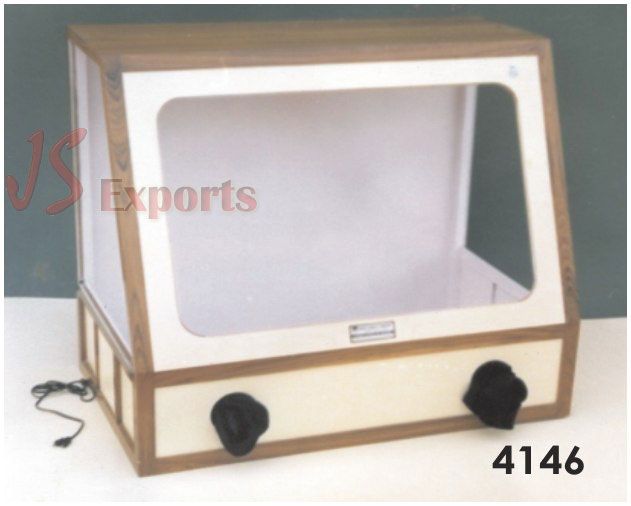

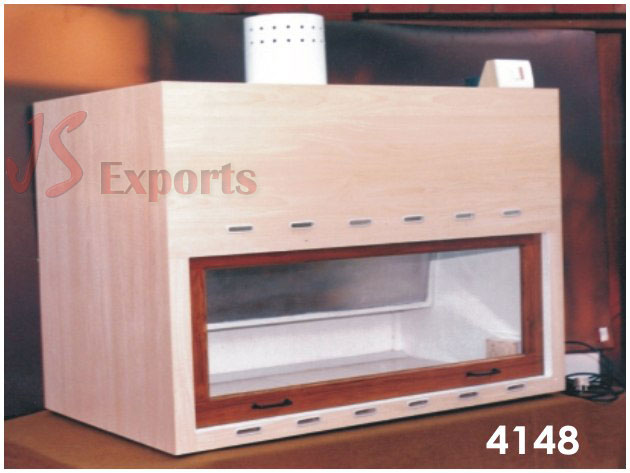

Versatile chamber for fumigating for sterilization with insecticide f or preservation clothes, plants, old books etc. Made of sturdy board , mica covered , Epoxy coated from inside with fume circulator of electric motor. Top cover tightened with clamps. One drawer is provided for keeping petri-dish for fumigants chemicals. Castor wheel provided for Easy movement.

Size :
a. 90 x 60 x 80 cm. (36” x 24” x 32”)
b. 75 x 50 x 65 cm. (30” x20” x 26”)
c. 50 x 40 x 55 cm. (24” x 16” x22”)

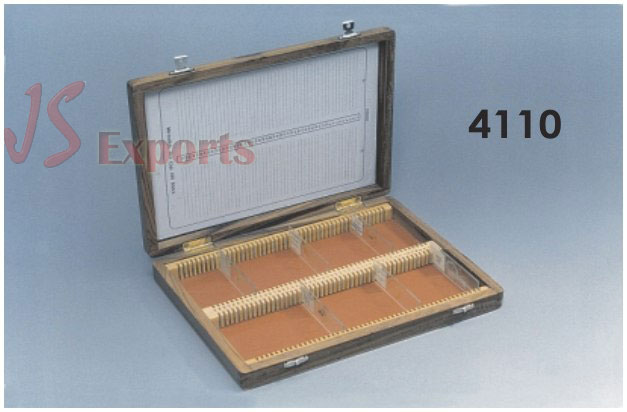

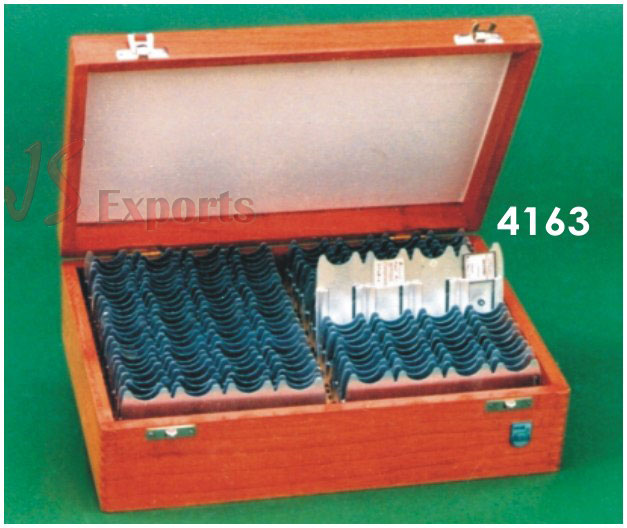

For 35mm film slides. F rame fabricated out of T eak wood with tongs & grooves type joints. 50 X50 mm plastic or card cover in vertical position wooden grooves serially numbered are fitted on cushioned bottom . Inner side of the lid is pasted with index sheet .All fittings like hinges and clips are made of brass . Nicely polished.
Capacity :

(a) 200 Slides (b) 100 Slides (c) 50 Slides (d) 25 Slides

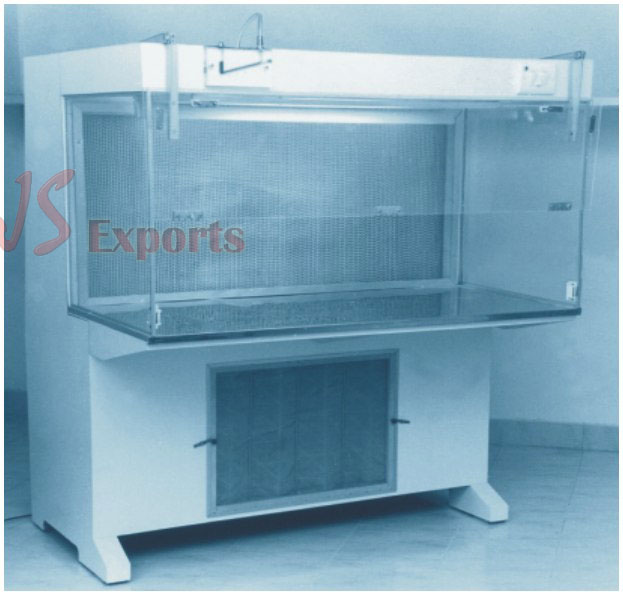

Optional :
(i) S.S. Table top in lieu of Mica (Extra)
(ii)Exhaust system complete with blower and ducting fittings (Extra).
(iii)Voltage Stabilizer : Suitable to above models.

Spare Accessories :
(i) Hepa filter : 2' x2'x2" 3'x2'x6" 4'x2'x6"
(ii) Pre-filters : 2'x2'x2" 2'x1½'x2"
(iii) UV Tube : 1½' x 15W 3' x30W (with fittings)
(iv) Compact Fluorescent lamp (CFL) : 11W/220V -Light 75W, Life-10,000 burning hrs.
a. With Magnetic Ballast b. With Electronic Ballast
(v) Manometer :Acrylic block type, accurately calibrated with brass fittings complete.
(vi) Gas Cork : Brass duly chrome plated.
(vii) Gas Burner : Brass Superior quality.
