Physics > Electronics > Communication Trainers

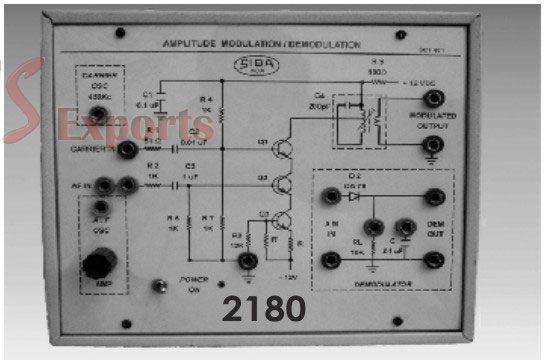

Amplitude Modulation/Demodulation DSB   (2180)

Kit consists: Inbuilt carrier frequency oscillator, inbuilt 1Kc sine wave oscillator with amplitude control 0-10 Vpp. Transistorized modulating circuit with tank circuit. Demodulation with diode detector with RL and C. Built in supply, mains operated.

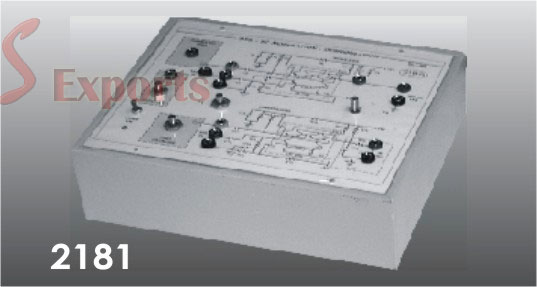

Amplitude Modulation/Demodulation DSB SC   (2181)

Kit consists : Inbuilt carrier frequency generator , inbuilt 1Kc sine wave oscillator with amplitude control, balanced modulator with carrier null control. Demodulator consists, inbuilt local oscillator with crystal lock, product demodulator w ith low pass filter. Built in supply mains operated.



Amplitude Modulation/Demodulation SSB   (2182)

Kit consists: Inbuilt carrier oscillator , inbuilt 400 Hz sine wave oscillator with amplitude control, balanced modulator , crystal filter with tuned circuit, synchronous demodulator with LPF. Built in supply , mains operated.



Amplitude Modulation / Demodulation VSB   (2183)

Kit consists: Inbuilt carrier oscillator, inbuilt 1 Kc sine wave oscillator with amplitude control, balanced modulator , filter consists crystals and tuned circuit, detection by product demodulator with LPF . Built in supply , mains operated.



Frequency Modulation/Demodulation Reactance modulator   (2184)

Kit consists: 1 MHz, Transistorized oscillator / modulator circuit with buffer amplifier. Demodulation by slope detector . Built in supply , mains operated.

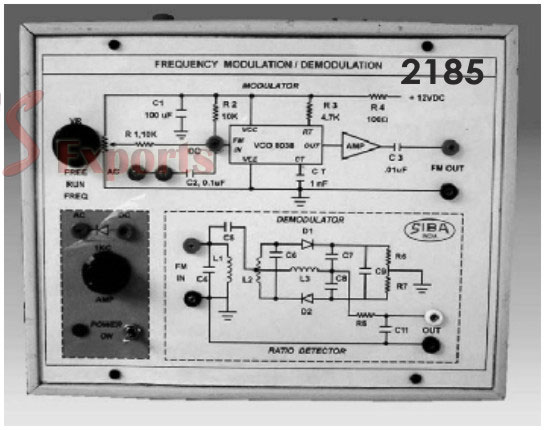

Frequency Modulation / Demodulation VCO type   (2185)

Kit consists: Frequency generation and modulation by voltage controlled oscillato r IC 8038 running at center frequency 20 kHz. Inbuilt phase synchronized 2 kHz modulati ng oscillator. Detector circuit consists phase lock loop. Built in supply , mains operated.

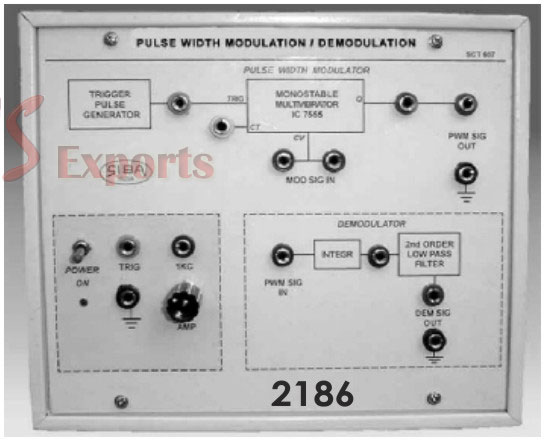

Pulse Width Modulation / Demodulation   (2186)

Kit consists: Trigger pulse generator spot frequency , MMV with constant current source to obtain pulse width modulation. Inbuilt synchronized AF generator with variable amplitude. Demodulator consists an integrator and low pass filter. Built in supply , mains operated.

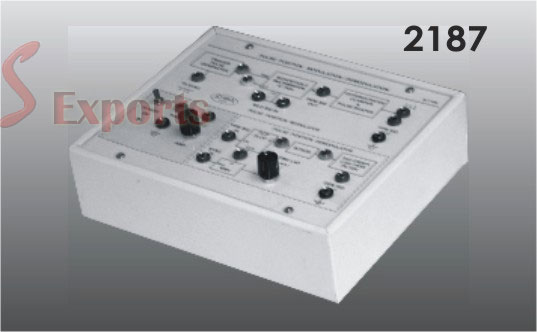

Pulse Position Modulation and Demodulation   (2187)

Kit consists: Trigger pulse generator and MMV with pulse shaper to generate PPM signals. Demodulator consists carrier synchronized flip-flop with integrator and low pass filter. Built in supply , mains operated.

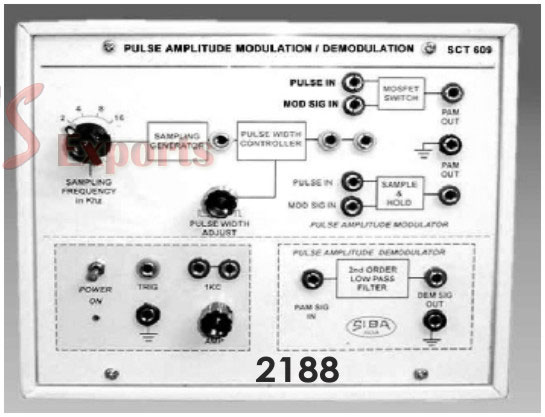

Pulse Amplitude Modulation and Demodulation   (2188)

Kit consists: Sampling rate generator with four selected frequencies. Pulse width controller to vary the sampling pulse widths, two modulator (a) mosfet switch (b) sample and hold circuit. Demodulation circuit is based upon LPF. Inbuilt synchronized AF generator with variable amplitude. Built in supply, mains operated.



TDM Pulse Amplitude Modulation and Demodulation   (2189)

Kit consists: Crystal controlled sample rate generator with 1-4 line decoder. 3+1 channel analog mux for sampling to generate TDM PAM signal. Demodulator consists, threshold comparator with PLL sync generator, three channel analog switching demux, with LPF (3 No.) three synchronized AF frequencies with independent amplitude controls. Built in supply, mains operated.



Delta Modulation/Demodulation   (2190)

Kit consists: Two frequency sample rate generator, one high speed comparator, one linear integrator, flip-flop and buffer. Quantitizer demodulation circuit with integrator and LPF. Synchronized two spot frequency AF sine wave generator with variable amplitude controls. Built in supply, mains operated.

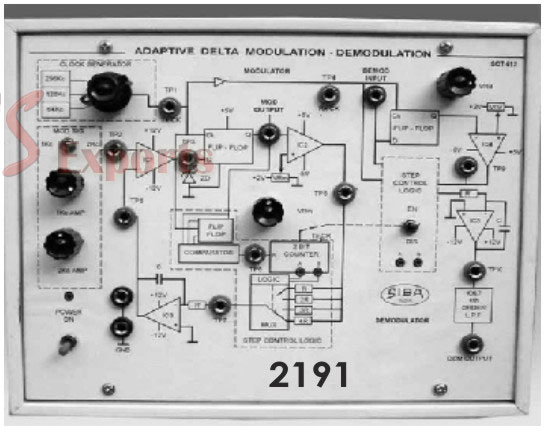

Adaptive Delta Modulation and Demodulation   (2191)

Kit consists: Three frequency sampling generator, high speed compactor, control flip - flop, linear integrator with different integrals selected by logic circuit mon itor the pulse width, demodulator has same circuit with LPF. Inbuilt synchronized 2 AF generators with variable amplitude controls. Built in supply, mains operated.

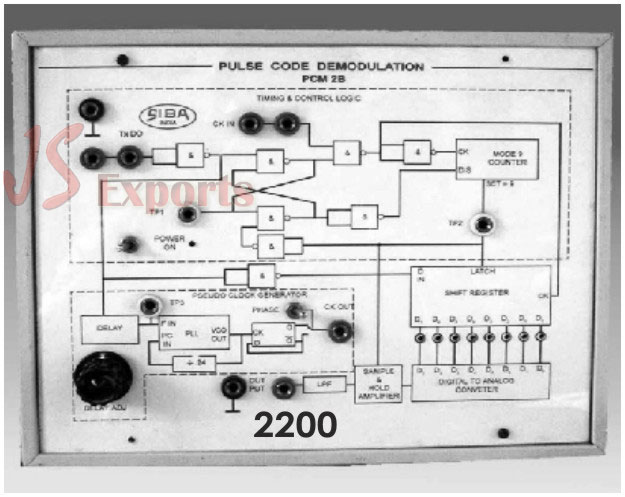

Pulse Code Modulation/Demodulation   (2200)

Kit consists: Crystal controlled frequency sample rate generator, high speed sampler, bit quantitizer (8 bit) encoder (ADC 800) followed by parallel to serial converter. Demodulator has shift register, PLL decoder, dequantitizer (8 bit DAC), and LPF. Inbuilt analog 0-5 volt dc supply as signal. Built in supply, mains operated.



AM Transmitter Demonstrator   (2201)

The board consists: Audio preamplifier to accept signals from microphone, Variable carrier frequency generator with constant amplitude from 550-1600 kHz, RF power amplifier with antenna. Transmission range 20-30 feet. Complete on printed circuit board with screen printing and test points, housed in teak box with cover. Three switched faults. Built in power supply, mains operated.



AM Receiver Demonstrator   (2202)

The board is designed as part of AM transmitter demo as well as independ ent unit. The board has antenna (coil), RF amplifier, local oscillator (1000-2100 kHz) mixer and IF amplifier, detector and AF amplifier with 3" loudspeaker. Three switched faults. Complete circuit on printed circuit board with screen printing, housed in teak cabinet with cover. Built in power supply, mains operated.



FM Transmitter Demonstrator   (2203)

The board has microphone amplifier, inbuilt modulating amplitude control, varacter modulator with carrier generator ranges 88-108 MHz, pre emphasis circuit, output amplifier with telescopic antenna. Complete circuit on printed circuit board with screen printing. Three switched faults. Tx range 30-40 feet. Built in power supply, mains operated. Housed in teak box with cover.



FM Receiver Demonstrator   (2204)

The board is designed as part of Tx demo as well as an independent unit. The board consists integrated circuit for complete process from signal input to AF o utput with de emphasis. AF output section is in discrete form with 3' loudspeaker. Three switched faults. Complete circuit with internal blocks are screen printed upon printed circuit board. Housed in teak box with cover. Built in power supply, mains operated.

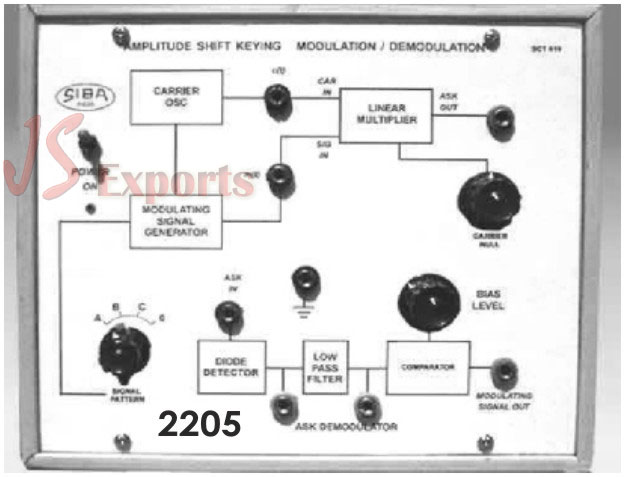

ASK Modulation/Demodulation   (2205)

The board has linear multiplier as ASK generator. Inbuilt logic signal, carrier oscillator, demodulation circuit with inbuilt power supply.

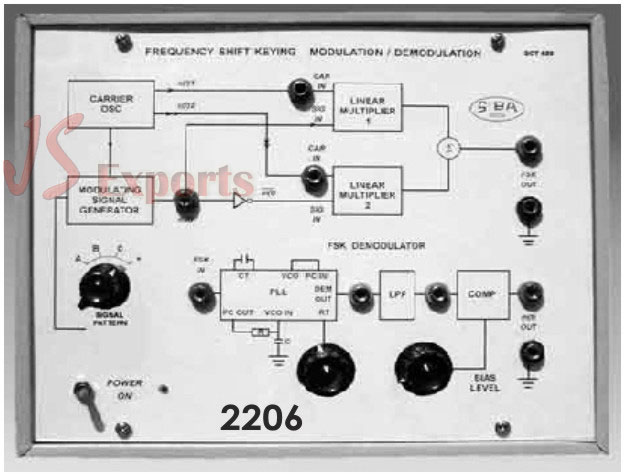

FSK Modulation/Demodulation   (2206)

The board consists two spot carrier frequencies with linear multiplier modulators. Built in logic signal with inverter. Demodualtion by PLL and camparator. Inbuilt dc regulated power supply.

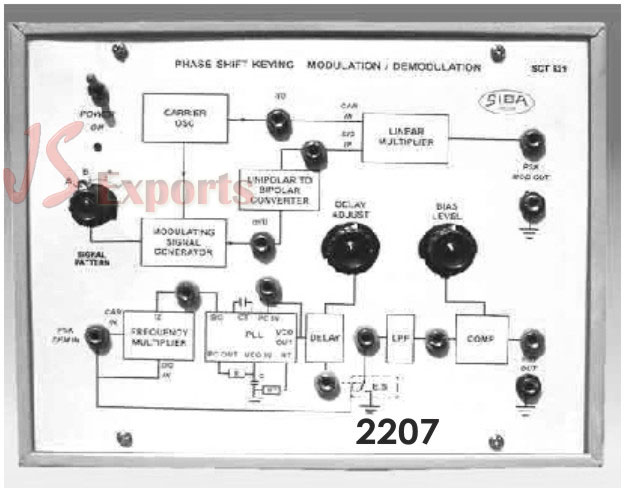

PSK Modulation/Demodulation   (2207)

The board has inbuilt carrier oscillator with logic signal generator. Modulation by linear multiplier and demodulation by PLL and linear multiplier.



Balanced Modulator/Demodulator DSBSC   (2208)

Aim: To study of balanced modulated (LM 1496) characteristics. To observe the effect of multiplier gain, to observe the process of carrier null, to obtain DSB SC signal from it. to study of balanced demodulator as product demodulator. The kit consists balanced modulator in form of two quadrant multiplier chip 1496, modulation transformer, carrier signal generator and AF waveform generator with associated components upon the board. Two quadrants multiplier chip 1496 as balanced demodulator. Inbuilt local oscillator of variable frequency low pass filter.



IC based Sample & hold kit   (2209)

Kit consists: Sample and hold chip LM 398H, sample frequency generator with pulse width control, AF signal in synchronism of sampling pulse, three capacitors.



B/W TV 20" Demonstrator   (2210)

With fault creation facility & test Point to note the voltages & wave shapes in different section with more than 20 Exp. & working manual

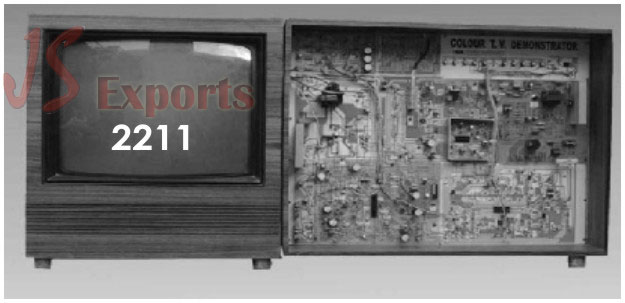

Colour TV 20" Demonstrator with Remote   (2211)

With fault creation facility & test Point Colour Adjustments controls are also provided outside with more than 30 Exp. & working manual.
