Chemistry > Electrical Heating & Cooling Units

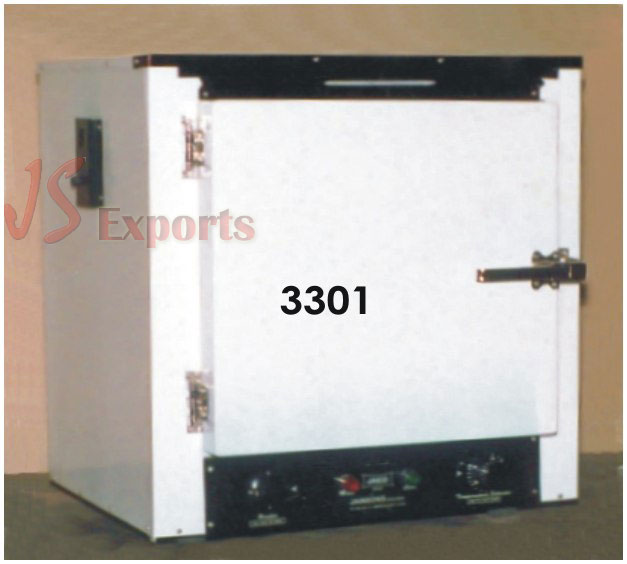

HOT AIR UNIVERSAL OVEN (Memmert Type)   (3301)

Three side heating elements. Standard double wall fabrication. Inner chamber made of anodized aluminium or highly polished stainless steel sheet. Exterior fabricated out of thick mild steel sheet duly finished in stoved enamel off-white paint or paste mat finish colour combinations. The gap between the walls is filled with- special grade glass -wool for heat insulation. Inner chamber is ribbed for placing shelves at convenient levels. P rovided with two or three removable shelves. special elegant door closing device has bee n provided. Nichrome wire heating elements provided on three sides attain quick and uniform heating in range of 50C to 250C 1C controlled by capillary type thermostat. L -shaped thermometer is built -in type. Control panel is provided with selector switch of high or low rates of power , thermostat control knob and indicators for mains & thermostat. Supplied with cord and plug . The equipment is suitable to operate on 220 V olts 50Hz, single phase AC.

Chamber size in mmNo. of shelves
a)300x300x3002
b)275x400x4002
c)350x350x3502
d)400x400x4002
e)450x450x4502
f)600x450x4502
g)600x600x6002
h)900x600x4502
i)900x600 x 6002
j)900x900x9002

Optional Accessories:: (Extra Cost)

i) Air circulating fan.ii) Timer 0-24 hours.
iii) Digital temperature Indicatoriv) Digital temperature indicator-cum-Controller.



DRYING OVEN   (3302)

Double wall extra sturdy construction on thick angle iron frame with both inner and outer walls of thick PCRC sheet duly protected against rusting and corrosion. The exterior is finished in ash-grey hammer tone. The gap is filled with special grade glass wool for heating insulation. A heavy duty constantly running blower provided to maintain uniform constant temperature in the chamber. Front door mounted on heavy hinges is double walled. Temperature is controlled by a capillary type thermostat with range from 50 C to 250C 2C to 3C workable on 220Volts, 50Hz, single or three phase AC. Provided with two trays. The panel provided with mains indicator, heater indicator, temperature control knob and dial type thermometer, Cord and plug.

Chamber sizes in mm.
a) 900x600x600 b) 1200x900x600 c) 1500x900x600 b) 1800x1200x900.

Optional Accessories: (Extra Cost)
A) Digital temperature indicator -cum-controller.

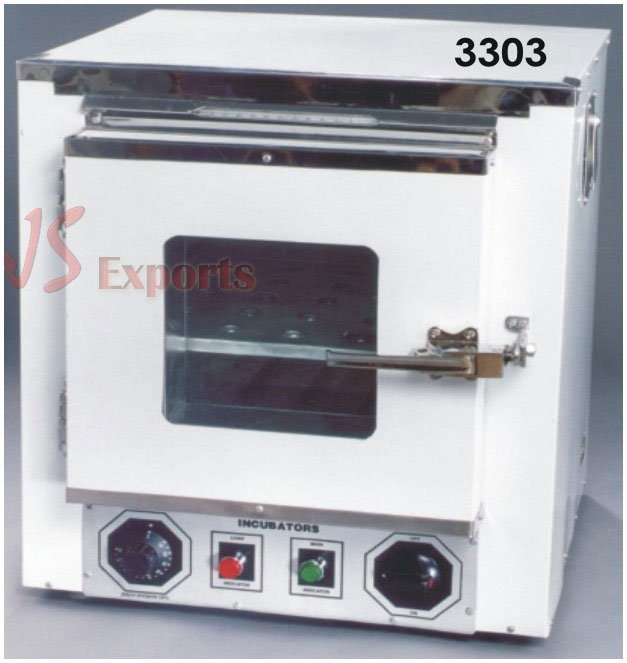

INCUBATOR BACTERIOLOGICAL (Memmert Type)   (3303)

Double wall fabricated. Inner chamber made out of richly anodized aluminium or highly stoving enamel paint or mat finished paste colour combinations. The gap is filled with special glass wool. Double wall door with double glass window for observation in the chamber. Temperature range 5C above ambient to 80C 2C controlled by a thermostat. L-shaped thermometer is provided for taking temperature reading. Panel is provided with pilot lamps for main heaters, On-Off switch, temperature Control knob etc. The equipment workable on 220Volts AC 50 Hz single phase. Heating is achieved from 3 sides. Perforated removable shelves also provided.

Chamber size in mm
a)300x300x300
b)350 x 350 x 350
c)400 x 400 x 400
d)450 x 450 x 450
e)600 x 450 x 450
f)600 x 600 x 600
g)900 x 600 x 450
h)900 x 900 x 900

Optional Accessories:: (Extra Cost)

i) Air circulating fan.ii) Timer 0-24 hours.
iii) Digital temperature Indicatoriv) Digital temperature indicator-cum-Controller.

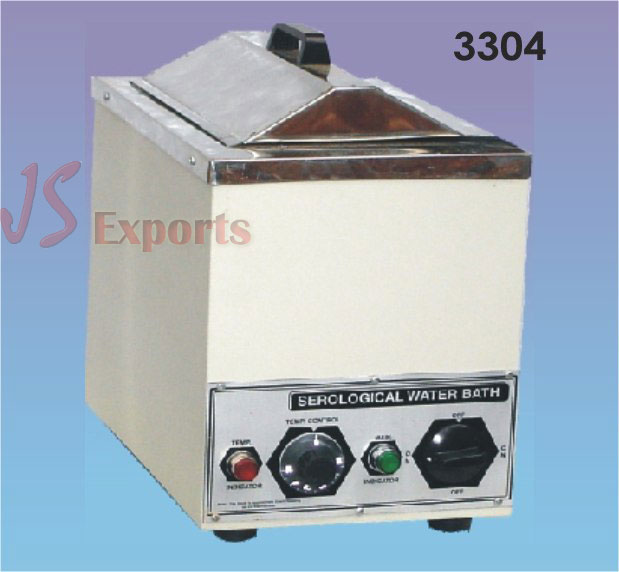

SEROLOGICAL WATER BATH   (3304)

Double wall construction, inner being made out of highly polished thick stainless steel and outer made out thick mild steel sheet finished in stoving white enamel paint or staple mat colour combinations. The gap is filled with special glass wool for temperature insulation. The bath is provided with a drain cock to easily drain out the water and clean the chamber when required. A pyramidal shaped cover is prov ided. Immersion type heating elements are fitted at bottom. temperature range 5C above ambient to 80C with accuracy 0.5C to 1C is controlled by capillary thermostat regulated by a graduated knob on the panel, which is also provided with pilot lamp etc. The equipments is workable on 220V olts, 50Hz single phase AC. The baths are supplied without thermometer and stirring arrangement.

Working chamber sizes in mm (Stainless Steel)
a) 300 x 175 x 175 b)300 x 250 x 175 c)375 x 300 x 175 d) 450 x 300 x 175

Optional Accessories: (Extra Cost) : Stirring arrangement with S .S. rod and blades, Digital temperature indicator , Digital indicator -cum-temperature controller .

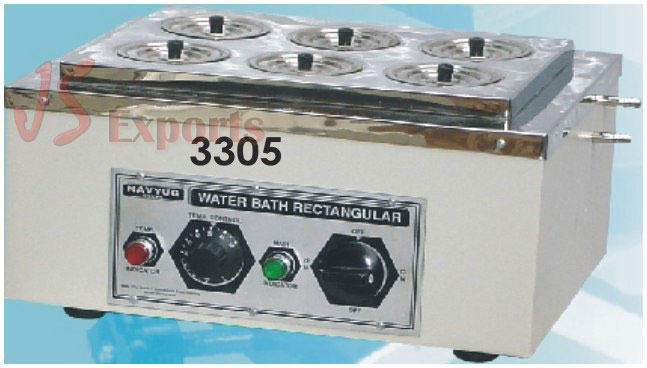

WATER BATH RECTANGULAR (Thermostatic Control)   (3305)

Standard double wall construction, inner being stainless steel outer of mild steel duly stoving paint finish and gap filled for temperature insulation with special grade glass wool. top cover with 75mm holes with concentric rings. temperature range 5C above ambient to 95C controlled by a thermostat. Heating is attained by an immersion type element with accuracy of 1C. Supplied complete with plug & cord. P anel provided with pilot lamps, thermostat control knob etc.
a) 5 holes b) 6 holes c) 12 holes



WATER BATH RECTANGULAR (SINGLE WALL)   (3306)

Body made out thick stainless steel. top made out of chrome plated sheet. Concentric rings to cover 3 dia holes are provided. Heating elements have automatic cut -off device which operates when the bath gets dried. Equipment working on 220V olts Hz single phase A C.
a) 6 holes b) 12 holes

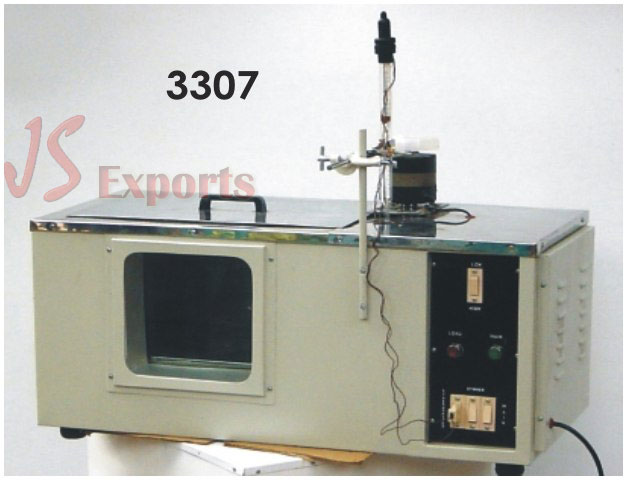

WATER BATH PRECISION (CONSTANT TEMPERATURE CONTROL)   (3307)

Construction as per model 6729 but with glass windows on both opposite sides, for observation. temperature controlled by mercury contact thermometer with a sensitivity of 2C. Suitable for precision laboratory activities requiring constant temperature with high degree of accuracy . Complete with stirrer with speed control regulator workable on 220Volts Hz single phase A C.

Chamber Size in mm :
a) 425x250x225 b) 450x375x375 c) 600x450x450




WATER BATH PARAFFIN   (3308)

Body specification as per standard double wall water baths but provided with cups and sleeves for glass tubes.
a) 4 cups & 6 sleeves. b) 6 cups & 8 sleeves. c)12 cups & 14 sleeves.

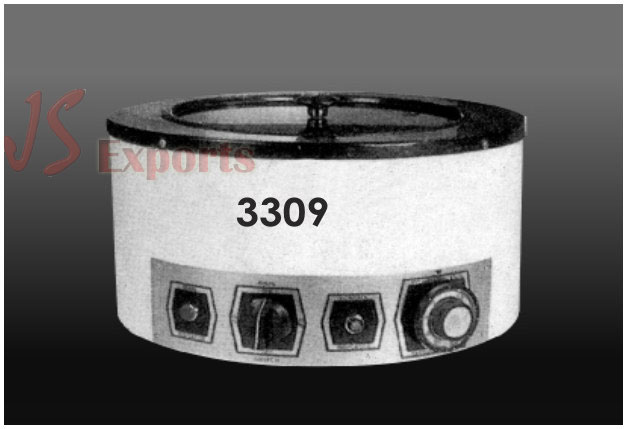

WATER BATH TISSUE FLOTATION   (3309)

Suitable to spread wax section ribbons after microtomy to get wrinkle free specimen for staining. Double wall round construction. Inner chamber black anodized aluminium and outer made out of mild steel duty finished in stoving white enamel paint. F or drying wet slides. temperature range 5C above ambient to 70C 2C. Immersion type heating elements attain the controlled temperature regulated by a capillary thermostat. P anel provided with thermo-regulator knob, pilot lamp and is supplied with cord & plug. equipment workable on 220V olts Hz single phase A C.

Chamber sizes in mm :
a) 200x75 b) 250x125




OIL BATH (High temperature)   (3310)

Double wall construction. Inner chamber made of highly polished stainless steel or copper sheet and outer made of mild steel duly finished in stoving enamel. T emperature range 50C to 250C 2C is controlled by a thermostat. The oil bath is suitable for a wide range of applications like oxidation stability test on oils, other tests in which high temperature control is required. Supplied complete with stirrer , diffuser shelves, cover etc. panel provided with On- Off switch, pilot lamps thermostatic control knob etc.

Chamber size in mm : (Stainless Steel)
a) 250x250x250 b) 300x300x250 c) 350x250x250

Optional Accessories: (Extra Cost) :
Mercury contact thermometer and relay with accuracy better than 1C, Digital temperature indicator, Digital temperature indicator-cum- controller instead of thermostatic control and L -shaped thermometer .



UNIVERSAL WATER BATH (Dual Purpose)   (3311)

Useful for dual purpose. It is a combination of serological and routine rectangular water bath with holes and co -centric rings. Standard double wall construction. Inner chamber made out highly polished stainless steel sheet and exterior made out of thick mild steel duly finished in stoving enamel paint, The gap between the two walls is filled with special glass wool for temperature insulation. Immersion heaters are provided for heating to attain temperature range from 5C above ambient to 90C 1C ans is controlled by capillary type thermostat, controlled by thermostat knob on the panel. Supplied complete with plug & cord. The equipment works on 220V olts 50Hz single phase A C. Equipments has been provided with two covers, one of a pyramidal shape and the other with 75mm diameter holes with co -centric rings. The chamber is provided with drain cock to easily drain out the water whenever required.

Chamber size in mm
a)300 x 225 x 175
b)450 x 300 x 175

Optional Accessories:: (Extra Cost)

i)Stirring arrangement SS rod & blades.
ii)Digital temperature Indicator
iii)Digital temperature Indicator -cum-controller.




CONSTANT TEMPERATURE REFRIGERATION LIQUID BATH   (3312)

a) Standard double walled construction. Inner chamber made out of thick highly polished stainless steel sheet. T emperature range 5C to 90C and controlled by sensitive Mercury contact thermometer with an accuracy of 0.2C. F itted a stirrer and speed regulator . Chamber size : 500 x 250 x 250mm.
b) As above but refrigerated bath fitted with a FHP pump for circulating t he cord liquid to the external equipment.

Optional Accessories : (Extra Cost) i) Digital temperature controller -cum-indicator instead of contact thermometer .




REFRIGERATED LIQUID BATH   (3313)

Standard construction, inner chamber made out of stainless steel sheet with digital temperature controller-cum-indicator. Temperature control range from -20C to 20C.
Chamber Sizes : 450 x 300 x 300 mm.



WATER BATH INCUBATOR SHAKER (Metabolic Shaking Incubator)   (3314)

Useful for studies on tissue metabolism, enzymes and protein coagulation and other experiments demanding shaking at constant speed under controlled temperature conditions. Double walled construction, inner chamber made out of thick highly polished stainless steel sheet and outer made out of thick mild steel duty finished in stoving enamel paint. The lid made of stainless steel. The gap between the two chambers filled with glass wool to pre vent loss of heat. The temperature is achieved by superior immersion heater and is controlled by capillary type thermostat from ambient to 90C 0.5C. The shaking mechanism is fitted with variable speed motor coupled to shaking tray wor k in on rollers. Shaking speed is controlled from 40 to 140 cycles per minute. Shaking tray can hold either test-tubes or flasks of 25ml. or 50ml. or 100ml. capacity . Front panel includes on- off switch, shaking mechanism indicator , speed control, thermostat control etc. L-Shaped thermometer is provided to indicate inside temperature. Equipment to work on 220V olts, 50Hz single phase A C.

Inner chamber sizes in mm :
a) 275 x 275 x75 b) 275x275x150 c) 400x300x150
Optional Accessories : (Extra Cost) Shaking Tray for 25ml, 50ml and 100ml

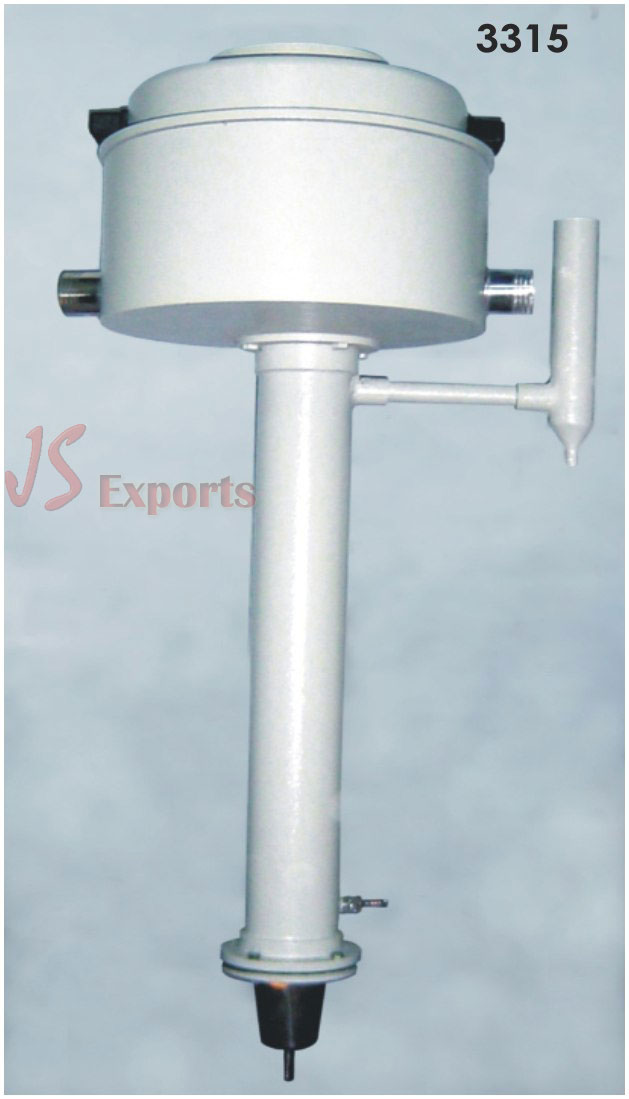

WATER STILL (MANESTY TYPE)   (3315)

Wall hanging casted aluminium vessel is electrically operated for getting pyrogen-free distilled water automatically . Wall hanging space saving arrangement is provided. The condenser is seamless. F itted with automatic ejection device which operates automatically when water vessel gets dried. The baffle cup and condenser are made out of thick stainless steel sheet.

Output Capacity Per Hour approx. : a) 2-3 litre b) 4-5 litre

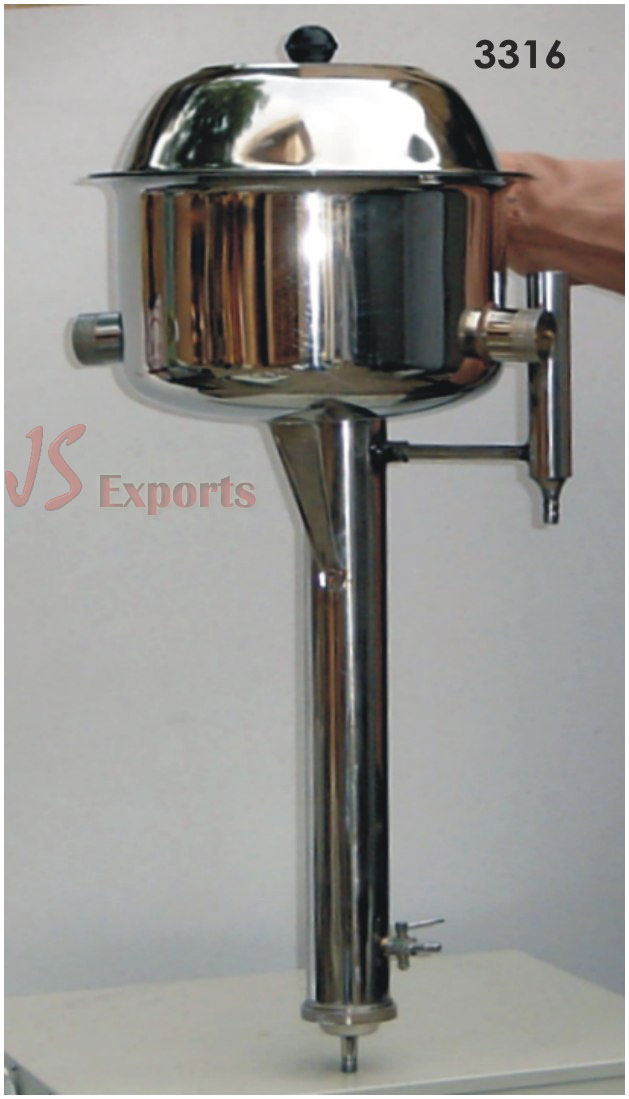

WATER STILL (MANESTY TYPE) Stainless Steel   (3316)

Wall hanging. Specification as above but made of stainless steel sheet.
Output Capacity per hour approx. : a) 2-3 litre b) 3-4 litre c) 4-5 litre

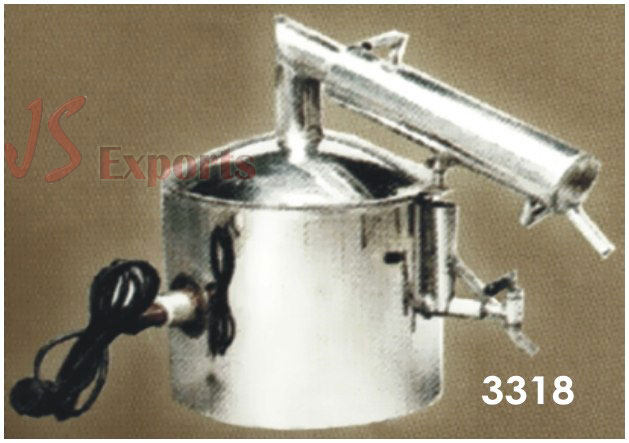

WATER STILL (BARNSTEAD TYPE) Table model   (3318)

Double wall construction having both made out of highly polished stainle ss steel sheet. The gap between the two is filled with glass wool for heat insulation. It is easy to handle table model working on 220 V olts, 50 Hz single phase A C.

Output Capacity per hour (Approximately) :
a) 4-5 litre b) 8-9 litre c) 15-16 d) 25-26 litre




DOUBLE DISTILLATION STILL   (3319)

Stainless steel, output approximately 6-8 litres per hour of double distilled water.

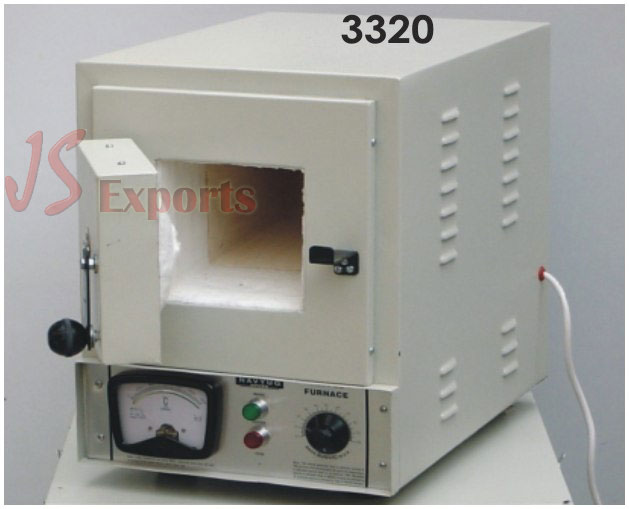

RECTANGULAR MUFFLE FURNACE (Laboratory Model)   (3320)

Outer shell out of thick mild steel duly finished in attractive stoving enamel paint. F itted with grooved refractory for supporting the heating elements made out of kanthal wire and are easily replaceable. Maximum temperature 1000C with working temperature 940C controlled by energy regulator . Complete with indicators, pyrometer , thermocouple - thermal fuse etc. workable on 220 V olts, 50 Hz single phase A C.

Inner Muffle size in mm
a)225x100x100
b)250x125x125
c)300x125x125
d)300x150x150
e)300x200x200

f)

350x175x125< /td>
g)475x175x125
h)450x225x225

Optional Accessories:: (Extra Cost) Digital Temperature indicator -cum-controller instead of energy regulator and pyrometer .

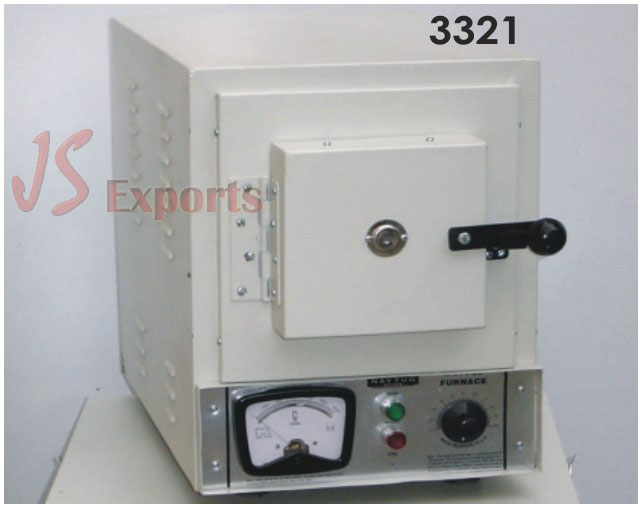

MUFFLE FURNACE (Industrial) RECTANGULAR   (3321)

Specification as model 6760 but maximum temperature 1150C with working temperature 1100C. Complete in all respects as above.

  Inner Muffle size in mm
a) 225x100x100
b) 250x125x125
c) 300x150x150
d) 300x200x200
e) 450x225x225

Optional Accessories: (Extra Cost) Digital temperature indicator -cum-controller instead of energy regulator & pyrometer .

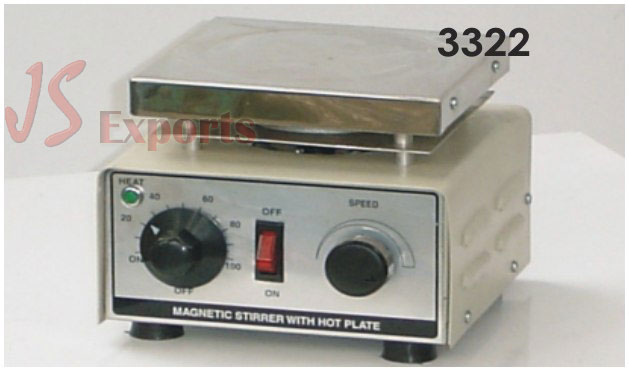

MAGNETIC STIRRER   (3322)

Compact stirring device utilising a rotating magnetic field applied from below the container. The stirring is accomplished by a Teflon rotor placed in the liquid to be stirred. Complete with pilot lamp, plug cord, continuously variable speed regulator. The body is made of mild steel duly finished in stoving enamel and mounted with stainless steel top which serves as a hot plate. Stirring and heating units are properly insulated. In model with heating system temperature is controlled by a energy regulator. An electronic speed controller is also provided. The equipment works on 220V AC 50Hz single phase.

a)Magnetic stirrer with hot plate. Capacity: 1Lt. 2Lt, 5Lt., 10Lt.
b)Magnetic stirrer without heating system. Capacity: 1Lt, 2Lt, 5Lt, 10Lt
c)Magnetic stirrer with hot plate & energy regulator.. Capacity: 1Lt., 2Lt, 5Lt, 10Lt, complete with T eflon coated magnet.

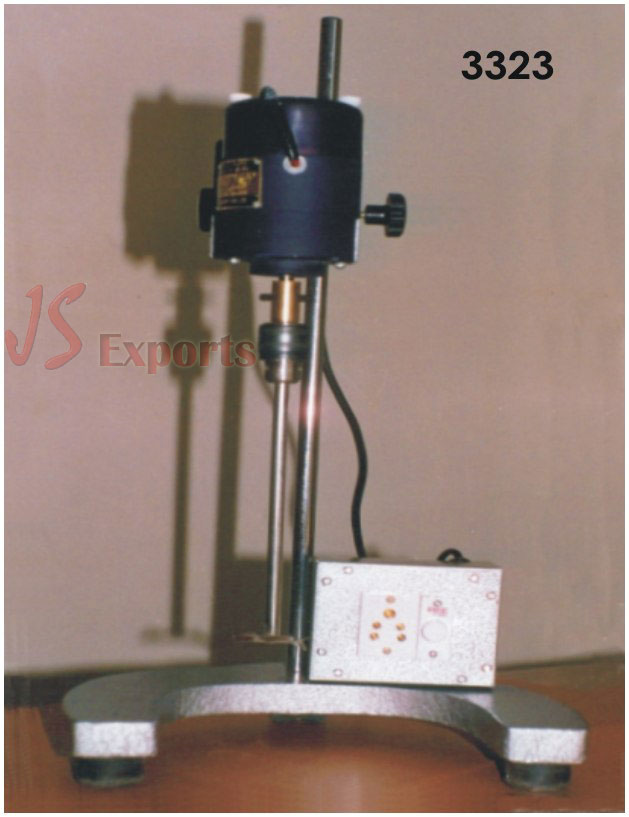

LABORATORY STIRRER   (3323)

Heavy & stable cast iron base duly painted with mild steel chrome plate d upright rod. AC/DC motor with stainless steel stirring shaft and blades, variable speed control unit provided. 1/20 HP motor provided for smooth longtime stirring . Height of stirrer and stirring space adjustable. T o work on 220 V olts 50 Hz single phase A C.



TISSUE HOMOGENISER   (3324)

Heavy stable cast iron base duly painted with mild steel chrome plated upright provided with strong adjustable clamps to hold motor with stirring rod of stainless steel with T eflon grinder and clamp to hold tissue homogenising vessel of borosilicate gla ss which is also adjustable. Speed variable through a control unit to work on 220 V olts, 50 Hz single phase AC. Motor used is of 1/20 HP

a)Homogenising Vessel 25ml.
b)Homogenising Vessel 50ml.
c)Homogenising Vessel 100ml.

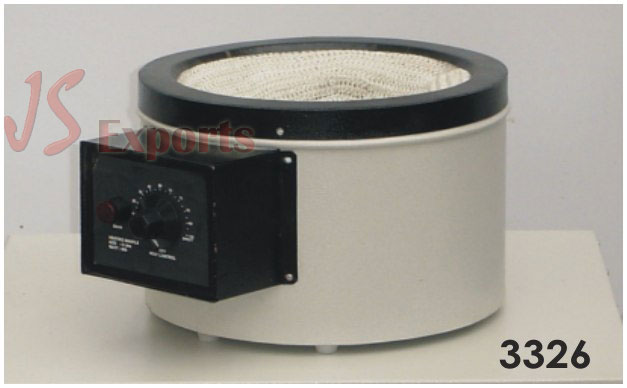

HEATING MANTLES   (3326)

Body in made of one piece aluminium ans is logged with special mineral wool. The panel is provided with on- off switch, energy control knob, pilot lamp. etc. Provided with joint less hand knitted heating nets of glass yarn capable of with standing high temperature up to 400C. Single individual size up to 5 liters capacity containers are available. Supplied complete with cord & plug to work on 220 V olts, 50 Hz single phase AC. Single circuit system has been adopted.

Single sizeWattage
a)50 ml 60
b)100 ml. 60
c)250 ml. 150
d)500 ml. 200
e)1 Lit. 300
f)2 Lit.450
g)3 Lit.450
h)5 Lit.600

Note : Other sizes, capacities, multiple models and spare heating mantles can be offered on demand.




HOT PLATES   (3327)

Laboratory hot plates are available in round and rectangular shapes. Body is fabricated out of thick mild steel sheet duly finished in stoving enamel paint. The hot plate made of cast iron, nicely & precisely machined & smoothed duly finished in heat resistant black paint is firmly mounted on the body . Heavy duty heating elements are securely laid under the plate to operate on 220V olts, 50 Hz single phase A C. Temperature is controlled by a three heat rotary switch along with an indicator lamp for the mains and cord & Plug.

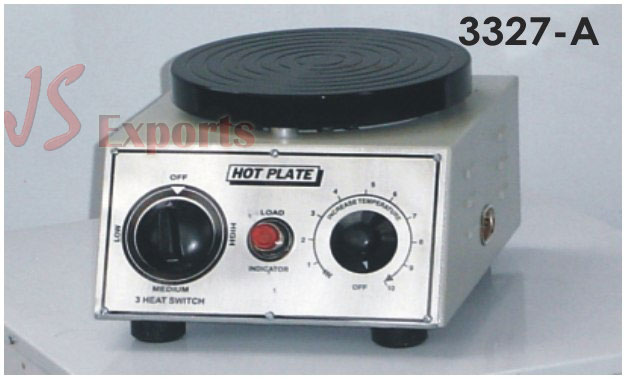

HOT PLATE ROUND Single   (3327-A)

Specification as above with 200 mm. dia. moulded top.



HOT PLATE ROUND Double   (3327-B)

As above but with two plates of 200mm dia. having independent pilot lamps & switches.


HOT PLATE Rectangular   (3327-C)

Specification as above but plates is rectangular in shape.
Following standard sizes are available:

i)300x250mm
ii)400x250mm
iii)450x300 mm
iv)600x450mm

Note: Other sizes can be offered on demand.
Optional Accessories: (Extra Cost)
a) Energy regulator .
b) Digital temperature Indicator -cum-Controller.




SLIDE WARMING TABLE   (3328)

A versatile equipment to heat slides with fresh microtomed sections to attain maximum flatness before staining . Temperature range ambient temperature to 70C i.e. below the melting point of wax. the temperature is thermostatically controlled. The body is made out of thick mild steel duly finished in stoving enamel and top is made of highly polished copper or stainless steel sheet. Complete with thermostatic control knob, ind icator lamp, plug & cord etc. T o work on 220V olts, 50Hz single phase A.C

Standard sizes available:
a) 300x250mm
b) 400x250mm.
c) 450x300mm

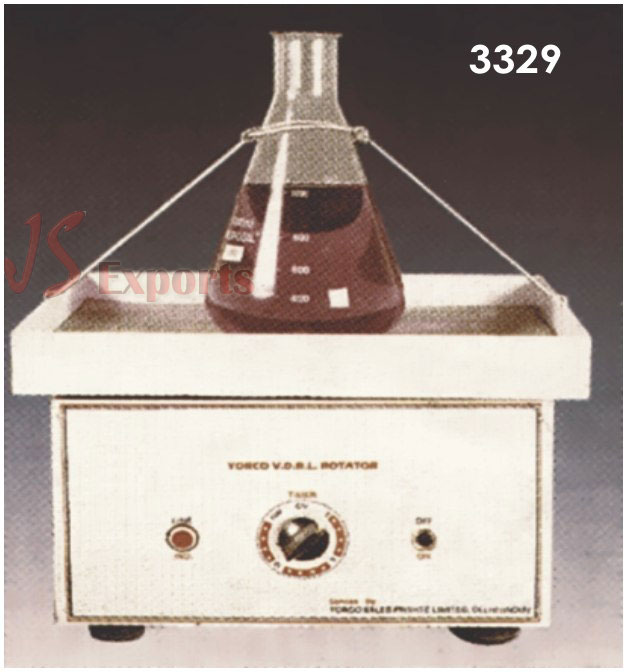

ROTARY SHAKER (VDRL Rotator) Fixed Speed   (3329)

Suitable for VDRL and other agglutination tests, blood grouping tests and for mixing of solutions in small flasks, beakers or bottles. Body made of sturdy mild steel sheet duly finished in stoving enamel paint. T ray type platform size 300x300mm can take cavity slides, bottles, flasks etc. for shaking at a fixed speed, by the help of spring wires. Standard fixed speed 180 RPM. An automatic 60 minutes timer can be provided against extra cost as optional by which shaking duration can be set to work on 220V olts, 50 Hz single phase AC.
NOTE : Variable speed rotator can be offered on demand.
Optional Accessories : (Extra Cost) 0-60 minutes timer .



SHAKING MACHINE (Wrist Action)   (3331)

Heavy cast - iron base with sturdy construction with two side arms for holding flask. A heavy duty fractional motor with variable speed through continuously variable speed controller is provided. The holders can hold flasks of capacity 100 to 1000ml. Supplied complete with cord & plug etc. to work on 220 V A C 50 Hz single phase. Speed 80-280 oscillations per minute.
a) Model to hold 4 flasks.
b) Model to hold 8 flasks.
c) Model to hold 16 flasks.

Optional Accessories : Automatic 0- 60 minutes timer .

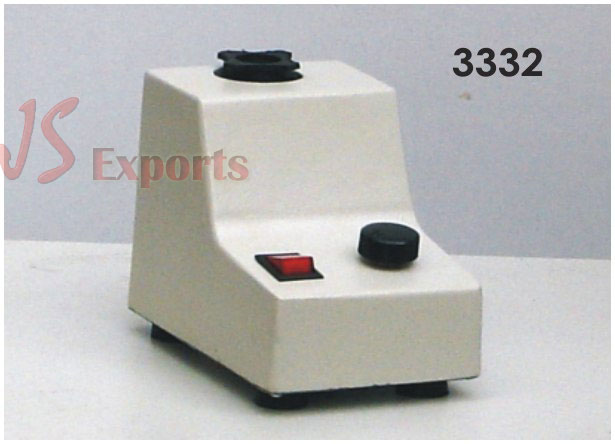

VORTEX SHAKER (Test Tube Shaker)   (3332)

Useful for accelerated mixing of solutions in test tubes, small fl asks or centrifugal tubes etc. The housing is 150x150 mm. the speed is regulated by a speed control device. Short eccentric stroke motor imparts vigorous agitation to the tubes or flasks. Body is strong and finished in stoving enamel paint. The equipment is workable on 220V olts, 50 Hz, Single phase AC.

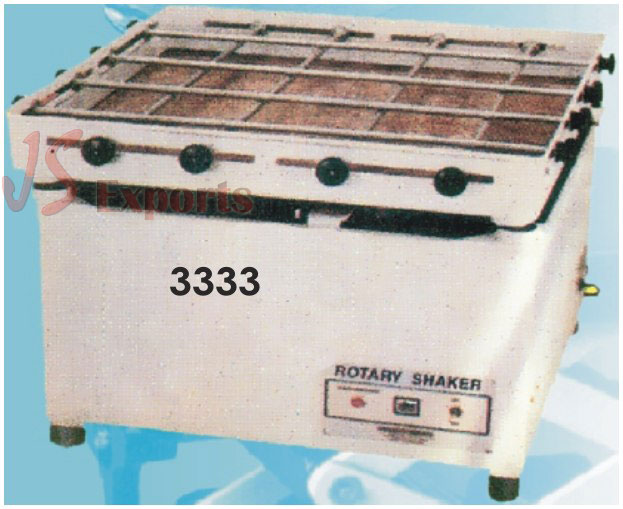

SHAKING MACHINE (KAHN Rack Type)   (3333)

Designed for shaking kahh racks, bottles, flasks of different sizes by adjusting compartments. F itted with heavy duty motor to work on 220 V A C 50 Hz single phase. the rate of motion is adjustable mechanically by belt tension. Speed is fixed in same models to approx. 275 or variable as detailed below.

Size of carrierStokes per minutesMotorBody type
a)500x330x1002750.25 HPOpen
b)500x330x1002750.25 HPCovered
c)500x330x100150 to 2500.25 HPOpen
d)790x430x100150 to 2500.25 HPCovered
e)915x460x100150 to 2500.50 HPCovered

Optional Accessories:(Extra Cost)0-60 minutes timer. Shaking machines of other specification can be offered on demand.




ROTARY SHAKER (Platform type)   (3334)

Body made out of thick mild steel sheet finished in stoving enamel paint. Heavy duty motors of suitable capacities are provided for long time, continuous operation. F ixed speed and variable speed models are offered. Platform is provided with r ubber discs to hold flasks. To work on 220 V A C 50 Hz single phase. The choices available are:
Platform sizeHolding CapacityMotor HP.
a)450x450mm25 flasks of 100ml0.25
b)450x450mm36 flasks of 50ml0.25
c)450x450mm15 flasks of 250ml0.25
d)550x550mm25 flasks of 250ml0.25
e)650x650mm36 flasks of 250ml0.25
f)1000x1000mm81 flasks of 250ml1.00
g)1000x1000mm81 flasks of 500ml1.00

Other sizes & capacities can be offered on demand.
Optional Accessories: (Extra cost) 0-60 minutes timer .

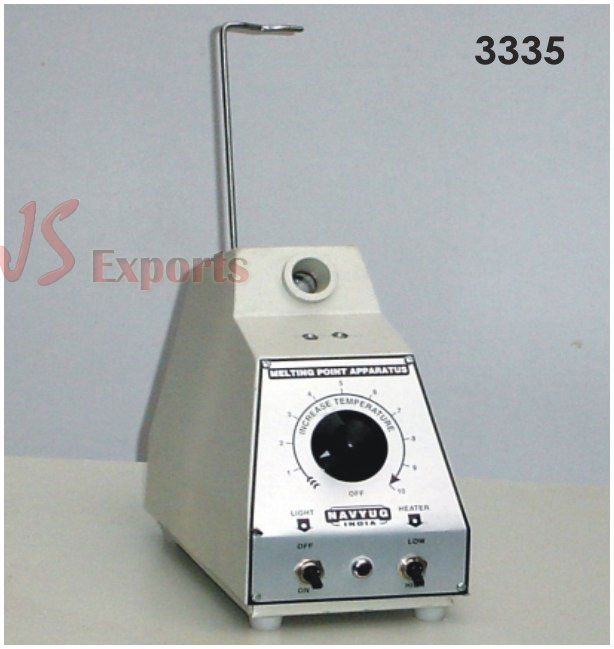

MELTING POIT APPARATUS   (3335)

A metallic heating block is provided with holes to receive three capillary tubes and a stem type thermometer . The body is finished in stoving enamel paint. The apparatus can measure melting point up to 350C. the block is heated by superior heating elements and temperature is controlled by a heat regulator . A shadow less lamp has been provided to illuminate the capillaries and a focusable magnifier facilitates in observations. The whole unit is housed in a aluminium cast casing and provided with a control panel. Provided with indicator lamps, heat energy regulator , on-off switch, cord-plug etc. The equipments is to work on 220 V A C 50Hz single phase. Supplied without thermometer & capillaries.
Optional Accessories: (Extra Cost)
i) Thermometer 360C. ii) Capillary tube set. iii) Cooling plug.



PIPETTE WASHER (Automatic)   (3336)

It constitutes of a washing cylinder made of stainless steel sheet highly polished measuring 63 cm. in height and 15 cm. in diameter and is mounted on a base of 26 cm. diameter. It is provided with a removable pipette holder. It can accommodate pipette of 37.5 cm length. It works on the siphoning principle.

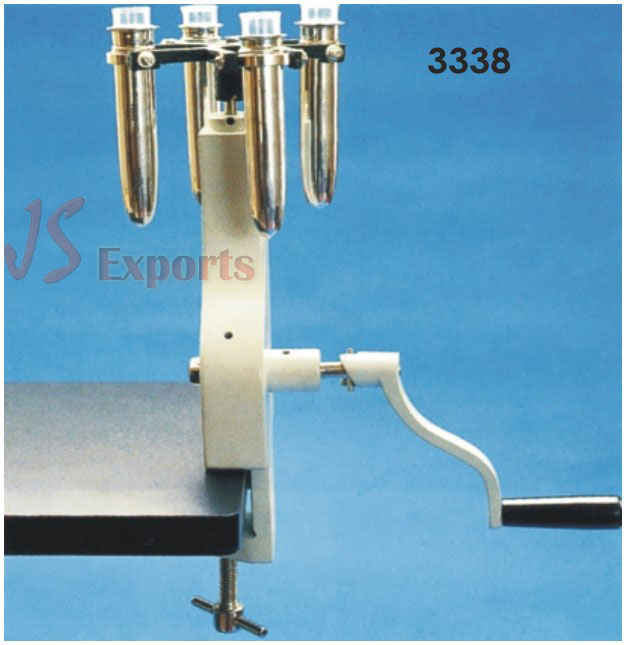

CENTRIFUGE MACHINE, HAND   (3338)

A single speed hand driven machine consisting of dies casted parts and a steel pinion and worm drive. Screw clamps the machine to the bench. Finished in white color, with removable crank handle. Suitable for 15ml. glass tubes. For 2 Tubes and 4 Tubes.

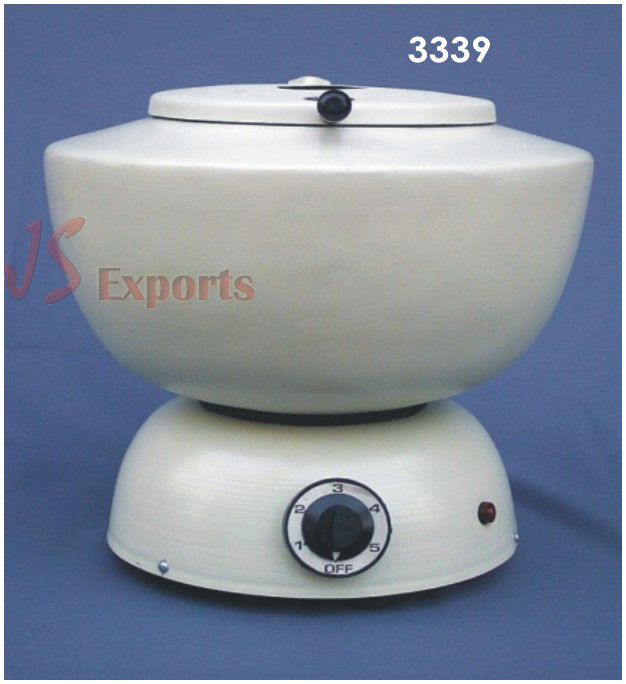

MEDICO/CLINICAL CENTRIFUGE   (3339)

Electrically operated, dome type, sturdy, stable heavy body with resiliently mounted motor working on 220 Volts, 50 Hz, single phase AC for vibration free performance with built in 5 speed regulator and a non-removable swing out rotor. Complete with tube carriers. Maximum speed 3500 RPM. Neatly finished in stoving enamel paint.
a) 4x15 ml. tubes.
b) 6x15 ml. tubes.
c) 8x15 ml. tubes.

Optional Accessories : (Extra Cost) Automatic 0-60 minutes timer .

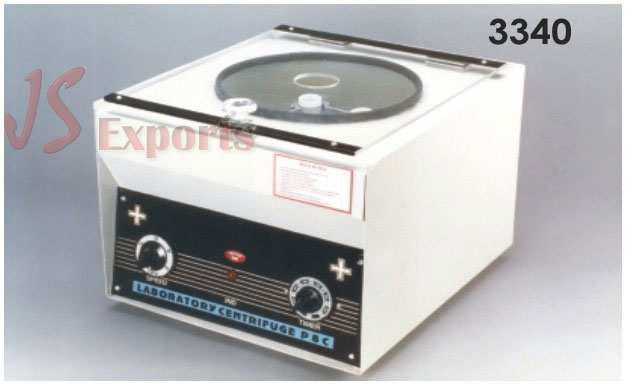

MEDICO/CLINICAL CENTRIFUGE   (3340)

Electrically operated, R ectangular body sturdy , stable heavy body with resiliently mounted motor working on 220 V olts, 50Hz, single phase A C for vibration free performance with built in 5 speed regulator and a non-removable swing out rotor . Complete with tube carriers. Maximum speed 3500 RPM. Neatly finished in stoving enamel paint.
a) 4x15 ml. tubes.
b) 6x15 ml. tubes.
c) 8x15 ml. tubes.

Optional Accessories : (Extra Cost) Automatic 0-60 minutes timer .

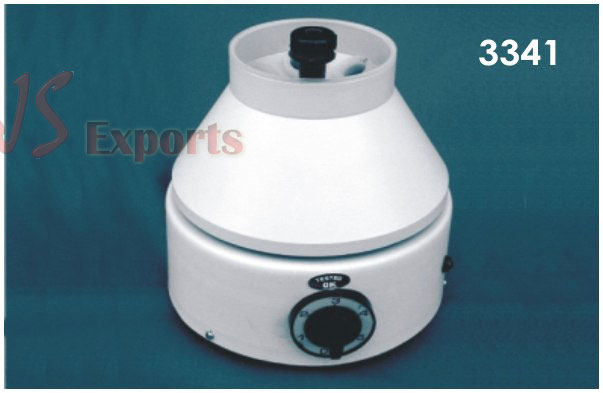

MEDICO/CLINICAL CENTRIFUGE   (3341)

As above but with conical body.

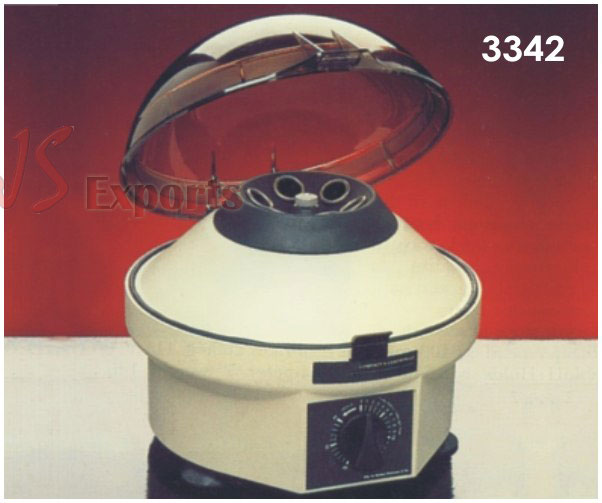

6 PLACE ADAMS CENTRIFUGE   (3342)

Ideal for the student laboratory. Speed fixed at 3200 rpm; generates 1315g . Complete with 6-place fixed angle rotator, six stainless steel shields and adapters for various tube sizes; accommodates 2-15ml tubes. L ow temperature rise helps to protect specimen analytes. F eatures a 30-minute timer with "hold" position for continuos operation and an attached, durable cover with safety interlock switch. Brushless motor . Rugged centrifuge base rests on three rubber suction feet for maximum stability . Dimensions: 15" H x11" dia.



SOXHLET EXTRACTION UNITS (MANTLE TYPE)   (3343)

Standard mild steel study body and upright fitting. Body finished in stove heating paint and other parts duly chrome plated. Housing provided with heating mantles f or surface temp. up to 300C. Provided individual on- off switches & pilot lamps, without glass parts.
1) A unit of 3 mantles rating 500 watts.
2) A unit of 6 mantles rating 750 watts.



SOXHLET EXTRACTION UNITS (Heater type)   (3344)

Heaters have individual on- off switch & indicators. Provided with one common energy regulator to control all units. W ithout glass parts.
i) A unit of 3 heaters.
ii) A unit of 6 heaters.



SOXHLET EXTRACTION UNITS (Hot plate type)   (3345)

As above but with hot plates.
1) A unit of 3 hot plates.
2) A unit of 6 hot plates.



SOXHLET EXTRACTION UNITS (Bath type)   (3346)

I) Single wal , chamber made of stainless steel. Provided with individual on-off switches but having one energy regulator to control all units. Units without glass parts.
1. A unit of 3 baths.
2. A unit of 6 baths.

II) Double wall, inner chamber made of stainless steel, other specification as above.
Optional Accessories: (Extra cost) R egulator can be provided against extra cost for all above units.
All above units work on 220 Volt A C 50Hz single phase.

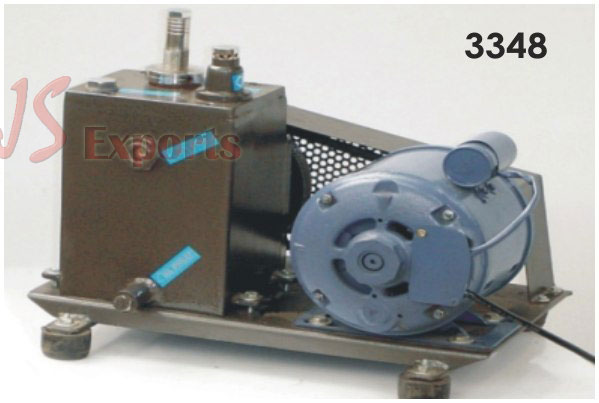

VACUUM PUMP   (3348)

Motor driven, oil sealed pump mounted on heavy base. It is driven by V-belt at speed up to 400 RPM. Choice of single and double stage available creating ultimate vacuum of 0.01 mm of high column and 0.00mm of Hg column respectively . The pump is to work on 220Volts AC. Capacities available are :

abcd
Capacity Lt./minute255075100
Motor HP0.250.250.250.50

Optional Accessories: (Extra Cost) : Vacuum gauge, Belt Guard, Moisture trap, Non-return valve and Air blast.




KJELDHAL UNITS   (3349)

Made out of mild steel duly finished in stoving enamel paint. Other metallic parts are chrome plated. Following units are available :
a) Kjeldhal Digestion Units
b)Kjeldhal Distillation Units

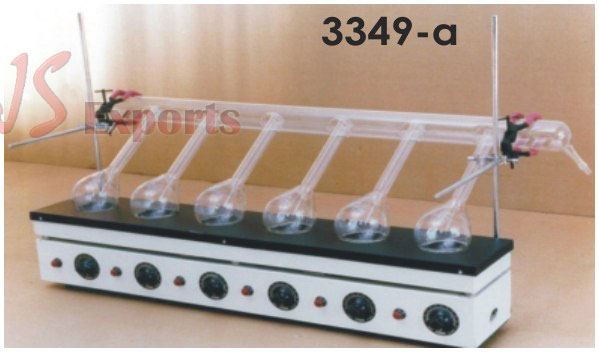

KJELDHAL DIGESTION UNITS   (3349-A)

Useful for estimation of nitrogen contents in substance by digestion in 300 & 500 ml flasks. Provided (optional) with fume duct made of lead and pair of hangers. T o work on 220Volts, AC. Individual on- off switches and one energy controller for all units is provided.
1) Unit of 3 tests (Heater type)
2) Unit of 6 tests (Heater type)
3) Unit of 3 tests (Mantle type)
4) Unit of 6 tests (Mantle type)

Optional Accessories: (Extra Cost)
i) Fume duct made of lead or Borosilicate glass.
ii) Energy regulator .

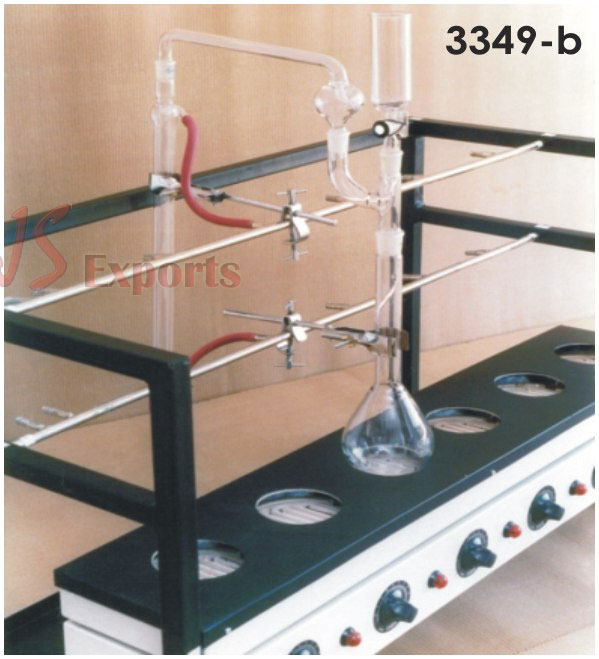

KJELDHAL DISTILLATION UNITS   (3349-B)

Asbestos tops mounted on mild steel tubular stand. Provided with condenser clamps and water manifold. Other specification as above.
1) Unit of 3 tests (Heater type)
2) Unit of 6 tests (Heater type)
3) Unit of 3 tests (Mantle type)
4) Unit of 6 tests (Mantle type)

Optional Accessories: (Extra Cost) Energy regulator.




KJELDHAL DISTILLATION & DIGESTION UNITS(Combined)   (3349-C)

One single mild steel tubular stand is provided with two heating shelves, one above the other. A fume duct holder and a heating box are supplied for digestion unit. The heating units have individual on- off switches. In the upper portion another heating unit with a condenser rack is provided. the unit is workable on 220V olts AC. Complete with cord & plug etc.
1) Unit of 3 tests (Heater type)
2) Unit of 6 tests (Heater type)
3) Unit of 3 tests (Mantle type)
4) Unit of 6 tests (Mantle type)

Optional Accessories: (Extra Cost) Fume duct made of lead or Borosilicate glass. Sunvic energy regulator. Note : All above units are without glass parts.

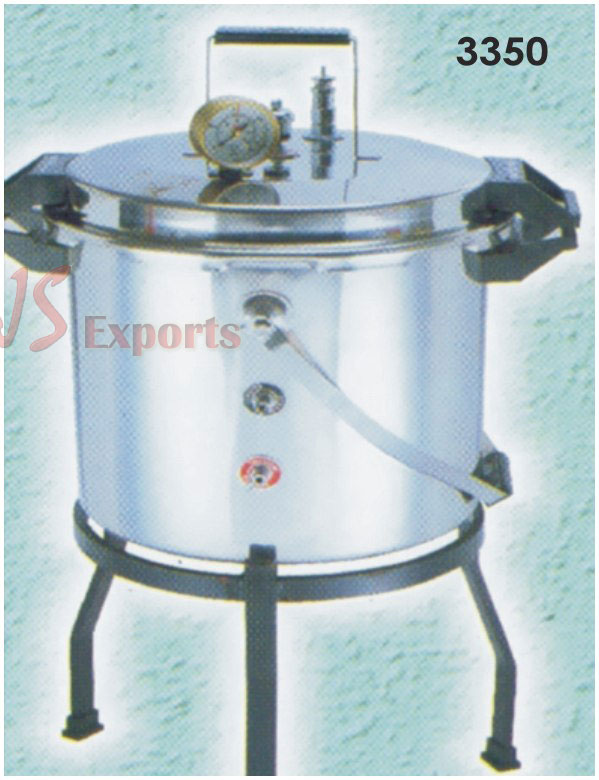

AUTOCLAVE LABORATORY (PORTABLE)   (3350)

Suitable for general laboratory use and sterilization. Stainless steel or aluminium vertical body having no joints. P ressure range 15psi to 18psi. Domed cover can be sealed by a joint less gasket which is clamped to the vessel by wing nuts by hinged bolts which engage slotted lugs on rim of the cover . Provided with dial pressure gauge. Spring loaded safety valve has threaded cap for pressure adjustments. Supplied complete with plug & cord and is suitable to work on 220 V A C 50 Hz single phase.
Sizes : Dia x height in mm: a) 300 x300 b) 300 x 375

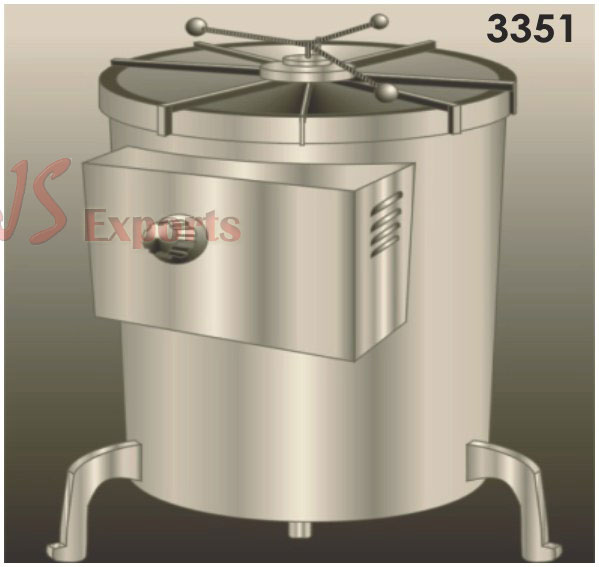

AUTOCLAVE (Vertical)   (3351)

Electrically heated sterilizer under saturated steam of adjustable pressure of 10 to 20 psi. Double walled construction with boiler & steam jacket made of thick stainless steel and gap is filled with high grade glass wool to bring the temperature loss to a m inimal level. The outer chamber is made out of thick mild steel. The lid is made of thick stainless steel plate (joint less) or gunmetal plate and can be sealed by a joint less neoprene rubber gasket by wing nuts through hinged bolts by engaging slotted lugs on rim of the cover. Provided with dial pressure gauge, air/steam release cock., spring loaded safety valve adjustable to any required point from 10psi to 20psi with accuracy 3 psi. A drain cock has also been provided. a double safety valve has also been provided along with water inlet. Supplied complete but without dressing bins.

Chamber Size mmLoad
a)250x4501.5 KW
b)300x5002.0 KW
c)350x4503.0 KW
d)400x6004.0 KW
e)450x6004.0 KW
f)550x7505.0 KW

Optional Accessories: (Extra Cost)
i) Automatic low-water level cut-off device,
ii) Pressure control switch,
iii) Radial lock (for models d, e & f)
iv) Dressing bins for various sizes
v). Water level arrangement.



AUTOCLAVE (Horizontal)   (3353)

Specification as in vertical model but presented in a horizontal position and without steam jacket. The outer body made of mild steel , inner chamber made of stainless steel.

Chamber Size mmLoad
a)350x5504KW
b)450x6006KW
c)550x7506KW
d)400x11009KW

Optional Accessories: (Extra Cost) i) Pressure Gauge ii)Automatic low water level cut -off device. iii)P ressure control switch.




SEED GERMINATOR (Dual Chamber)   (3354)

Specification as above but double chamber. For cooling a sealed compressor unit has been provided below the chamber to work independently. Each chamber size : 555x910x605mm
a) Heating and cooling in separate chambers : Chamber made of anodized aluminium.
b)As in (a) but chamber made of stainless steel.
c)Heating & cooling in both chamber and chambers made of anodized aluminium.
d) As in (c) but chambers made of stainless steel.

Optional Accessories: (Extra Cost)
i) Automatic 0-24 hours timer to regulate cyclic illumination conditions.
ii) Automatic voltage stabilizer - 3KV A (must)

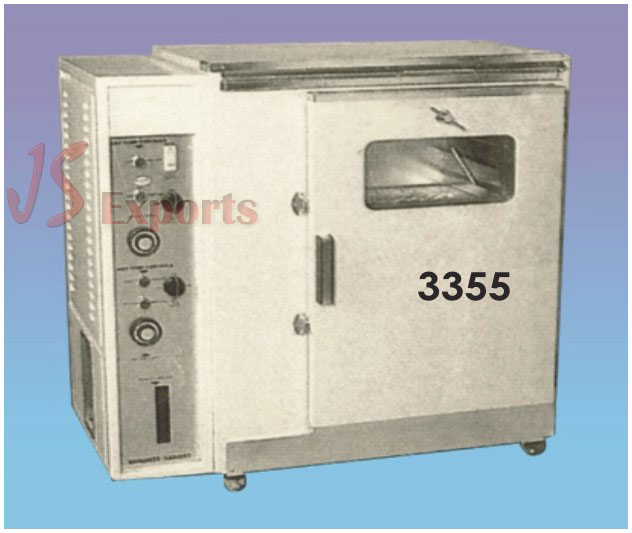

HUMIDITY CABINET   (3355)

Double walled construction, inner made out of richly anodized aluminium or stainless steel sheet and outer that of thick mild steel duly finished in stoving enamel paint. Gap is filled with glass wool for temperature, insulation. A circulation fan has been provided to maintain uniform temperature & humidity through out the chamber . Nichrome heating elements are provided to heat the chamber effectively . Temperature range from ambient to 60C is controlled by a thermostat. L-shaped thermometer is provided to indicate temperature in the chamber . Humidity is created by a generating steam by heating water in a stainless steel reservoir by an immersion heater and subsequent condensation in circulating air . the humidity is controlled by a humidistant from atmospheric humidity to 95% 3% RH. The double walled door has bee n provided with a double wall clear glass window for observation in the chamber without opening the door and disturbing chamber conditions. A control panel has been provided on left of the body and is provided with all control switches phase. Supplied complete with cord & plug but without hygrometer .

OPTIONAL : (Extra Cost) :
i)Hygrometer (Humidity indicator),
ii) Digital temperature Controller-cum-Indicator ,
iii) Digital temperature indicator,
iv) Automatic voltage stabilizer 3 KVA.

Models: Chamber size :
a) 455 x 455x 455 mm. (Ht.)
b) 455 x 455x710 mm. (Ht.)
c) 605 x 605x605 mm. (Ht.)
d) 605 x 604x 910 mm. (Ht.)

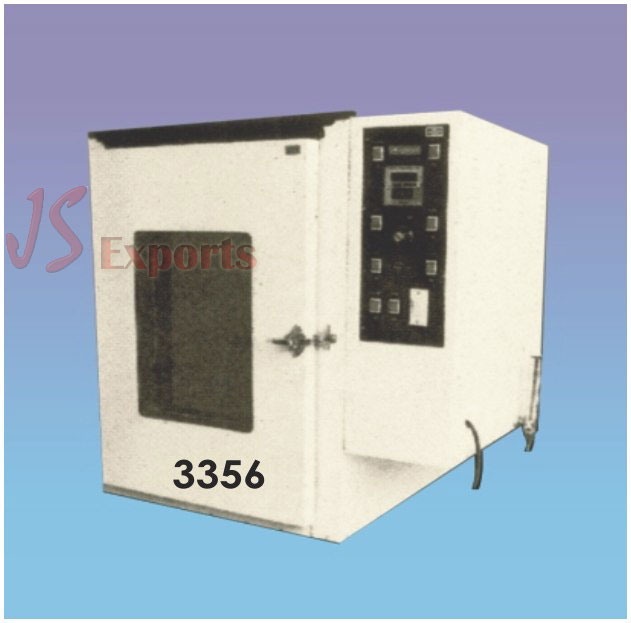

HUMIDITY CABINET (TEMPERATURE CONTROL)   (3356)

Environmental Chamber, General specification as above but with added specification for low tem perature control & humidity. The inner working chamber is made out of stainless steel. The temperature can be controlled from 5C-55C 2C and humidity from 55% to 95% 5% Rh through an electronic digital controller-cum-indicator. Temp. below ambient is controlled by hermetically sealed compressor complete with accessories heated by immersion heaters are provided to create humidity. Complete with all accessories. Control panel provided with control switches and indicators. The equipment to work on 220V olts, AC 50Hz, single phase. Provided with plug & cord but without hygrometer.

Models: Chamber size in mm.
a) 455 x 455 x 710 mm. (Ht.)
b) 605 x 605 x 605 mm. (Ht.)
c) 605 x 605 x 910 mm. (Ht.)

Optional Accessories: (Extra Cost)
i) Digital type hygrometer (Humidity indicator)
ii) Automatic voltage stabilizer 3 KV A (must)

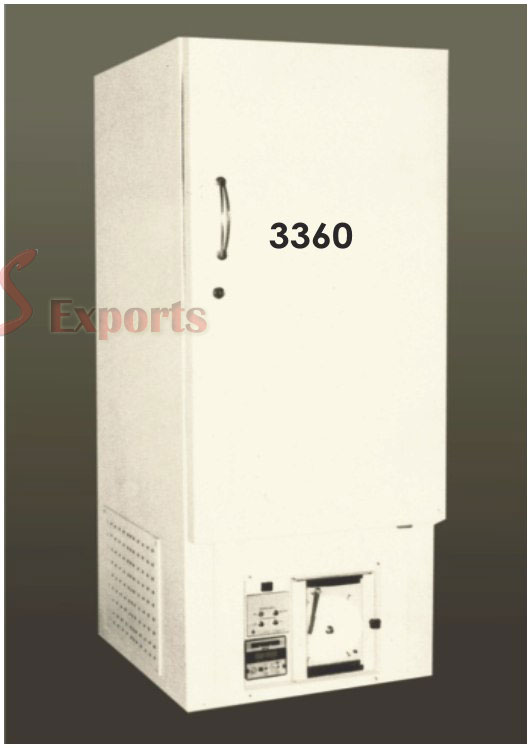

BLOOD BANK FREEZERS   (3360)

Standard double walled construction, inner chamber made out of stainless steel sheet and outer that of thick mild steel sheet duly stoving enamel painted and gap filled with glass wool for temperature insulation. Complete with double walled door with lock & key arrangement. T emperature between 4C to 6C is maintained by a digital temperature controller-cum-indicator and trigger audio-visual alarm in case of temperature fluctuations. A door operation alarm is also provided along with power failure alarm as a safety device. Drawers with index cards have been provided to hold blood bottles or blood bags. A sealed compressor unit and cooling coils running throughout the chamber are provided for thermal uniformity . Panel provided with pilot lamp, controls etc. Supplied with cord & plug etc. and equipment to work on 220 V olts, 50Hz, single phase AC.
Models :
a) Capacity 140 bags or 70 bottles of 450 ml.
b) Capacity 210 bags or 100 bottles of 450 ml.



BLOOD BANK FREEZER (Economy Model)   (3361)

Specification as above but capacity 70 bags or 35 bottles and without door operation and temperature fluctuation alarms.

Optional Accessories:: (Extra cost) Automatic voltage stabilizer 3KVA (must)

Note: Vaccine Freezers, Semen F reezers, Plate Freezers and Test Tube freezers are also offered on demand.

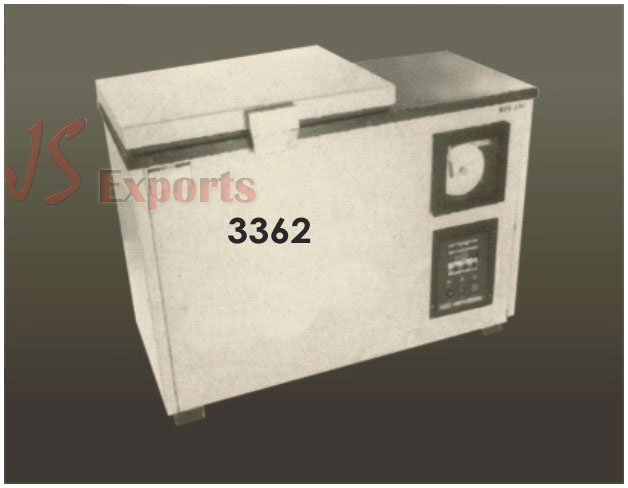

AUTOMATIONS DEEP FREEZER   (3362)

These plasma storage cabinets are designed for quick freezing and storing of plasma and related blood components at desired low temperatures up -35C. All models feature integrated control panel with digital temperature indicator cum controller and temperature recorder . Constructed of double walls, the exterior is made of powder coated sheet, steel finish while the inner chamber is made of stainless steel. The unit is mounted on castor wheels for ease of mobility . Plasma F reezers are available in horizontal and vertical versions. Temperature of F reezer also reduce up to -70C as per requirement.

Special F eatures :
Low temperature up -to -35C.
Stainless Steel inner chamber
Extremely efficient insulation to minimise heat loss.
Digital temperature indicator cum controller with audio visual alarm.
Inside acrylic door to avoid temperature loss.

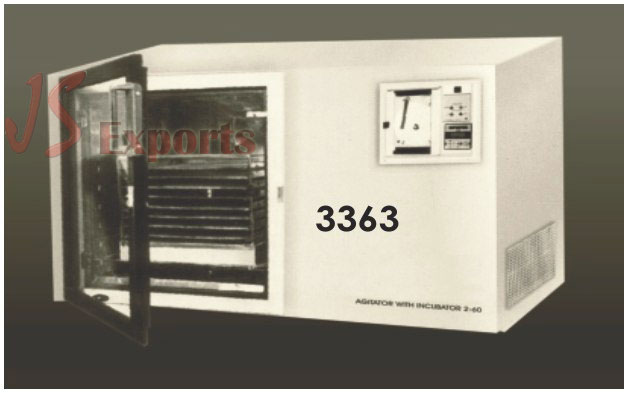

PLATLET AGITATOR WITH INCUBATOR   (3363)

Stainless Steel bag holder of good quality to allow effective temperature and good quality ventilation of platelet bags, achieved by one piece drawers for complete air circulation on both surfaces of bags. Continued shaking of bags to prevent clogginig (by side to side motion), " 4-5 RPM with heavy duty ball bearing gear motor and Internal fan.

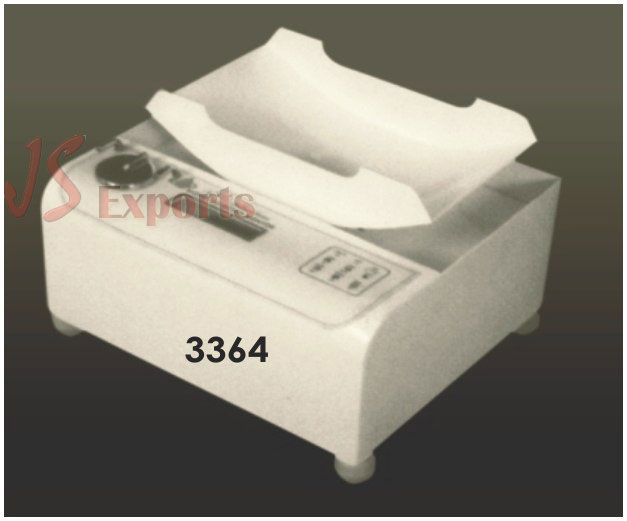

BLOOD COLLECTION MONITOR   (3364)

Preprogrameble collective device to draw precise volume of blood from donor . Fitted with uniformly oscillating collection tray to agitate blood during collection and ensure uniformly mixing of blood anti coagulant. Oscillation speed: 10RPM.

Digital display indication :
The volume of blood in the blood bag during collection.
Set volume, the volume which is to be collected.
Flow of blood, i.e. normal, high or low and indicating buzzer to abnormal flow .
Time taken for collection of set volume and running time also.
Automatic termination of blood collection when blood volume collected reaches preset volume.
Pause function for temporary stopping of blood collection in process but at that time oscillation will be continue.
Battery operated model also available (Optional model)

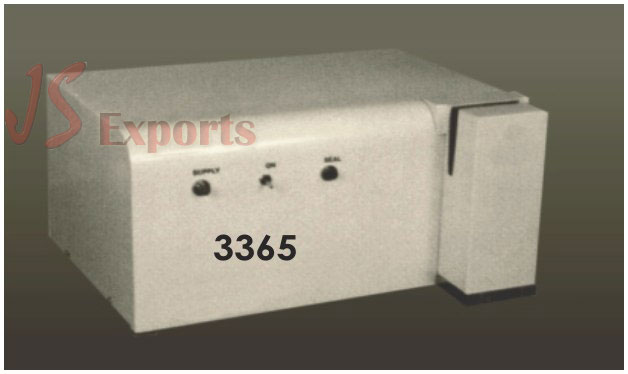

DI-ELECTRIC TUBE SEALER   (3365)

To seal tubing of plastic bags.
To provide hermetic seals on plastic tubing containing blood without causing haemolysis.
Plastic t6ubing sealed able to separate by pulling apart without leakage of blood.
Oscillation frequency: 40.68Mhz.
Maximum tube dia: 6mm
I/P supply: 230Volt AC 1%, 50Hz, single phase.
Power consumption: 12VA.

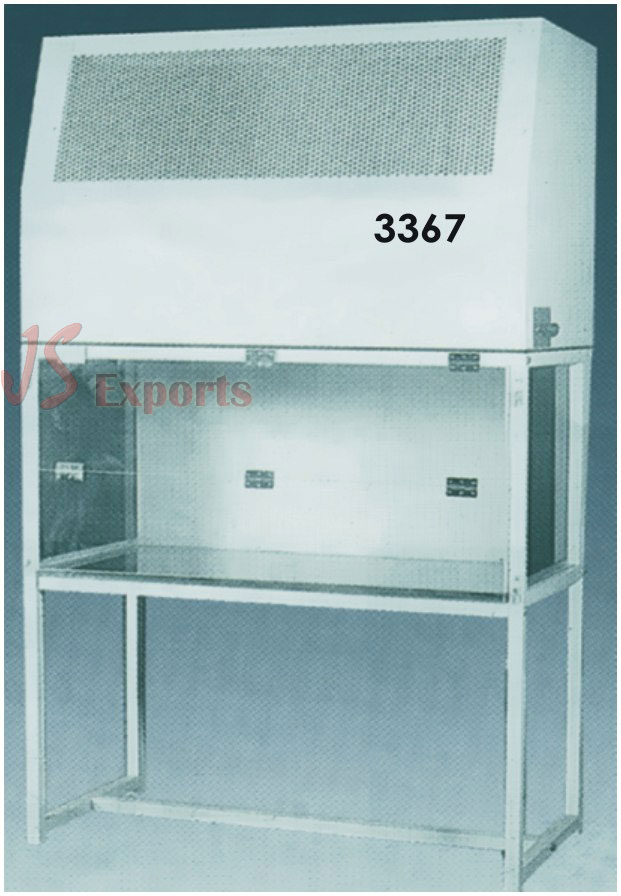

LAMINAR AIR FLOW CABINETS (Horizontal)   (3367)

Laminar flow principle involves double filtration of air through coarse pr e-filters (up to 5 microns) and Heat filter (down to 0.3 microns) for filtration of biological and particulate contaminants. A constant uni- directional air flow is drawn from atmosphere and passed through pre and heat filters on the work surface. F abricated out of reinforced ply board which is clab in from out side in laminated sheet and inner exposed areas are finished in epoxy paint. T able top covered with non-glaring laminated sheet or stainless steel sheet (optional). Side panels are fixed and are made out of transparent acrylic sheet. The front door is folding type and made of thick acrylic sheet. (Optional) Stand is built in type or detachable. Blower unit has A U or equivalent motor and is dynamically balanced with minimal sound & vibration level. Fluorescent lighting is also provided. A suitable UV tube is provided for sterilization. An acrylic block type manometer to measure static pressure in the chamber has been installed. T wo way gas tap for gas line has also been provided.

Working chamber sizes in mm.
a) 600x600x600 mm)
b) 900x600x600 mm)
c) 1200x600x600 mm)
d) 1800x600x600 mm)

Optional Accessories: (Extra Cost)
i) Stainless steel table top.
ii) Folding front door made of acrylic sheet.

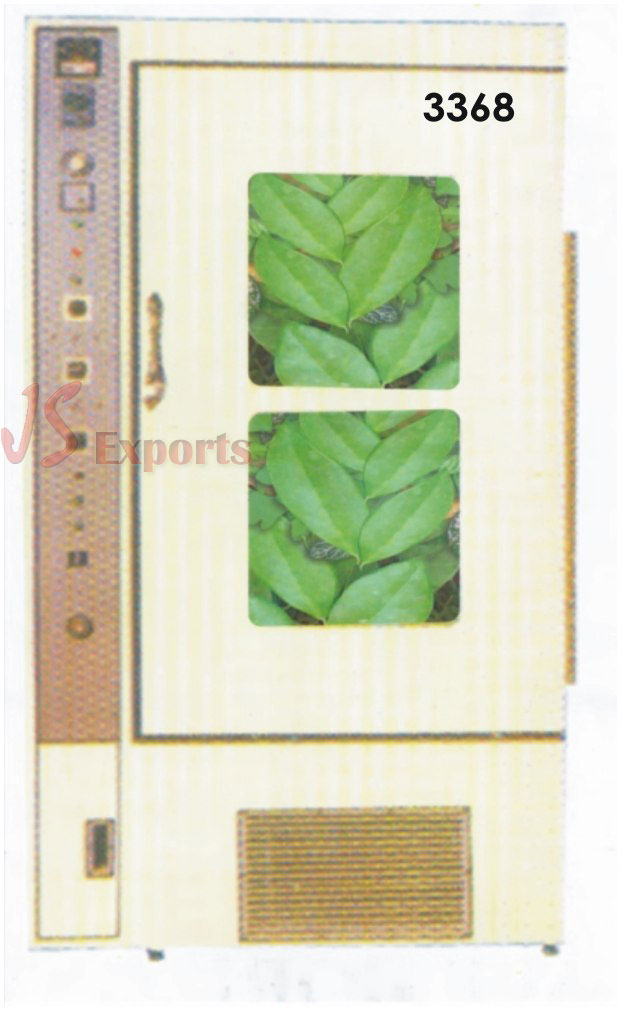

PLANT GROWTH CHAMBER   (3368)

Useful to conduct experiments on plant growth in controlled environmental c onditions. Double wall construction, inner made of anodized aluminium or stainless steel sheet and outer made of thick mild steel sheet duly finished in stoving enamel paint. the gap is filled with glass wool for insulation of temperature. In addition to a double walled door a full view clear acrylic door is provided for observation in chamber without opening it to avoid disturbance to the inner conditions. Instead a double glass window can be provided in the main door. Adjustable perforated shelves of stainless steel are provided. T emperature range 5C to 50C 1C is controlled and indicated by a dual electronic digital temperature controller -cum-indicator . Humidity control from 55% to 95% 2%RH is attained by a humidistant and created in a stainless steel water reservoir set below the chamber and heated by immersion heater . A 0-24 hour timer is also provided. The control panel is provided with indicator lamps, controls etc. Equipment to work on 22 0Volts, AC 50Hz, single phase. Supplied with cord & plug . Arrangement for fluorescent illumination and daylight has also been provided. The control panel is provided with indicator with indicator lamps, controls etc. Equipment to work on 220V olts, 50Hz, AC single phase. Supplied with cord & plug . arrangement for fluorescent illumination and daylight has also been provided.

Chamber size W x H x D Capacity a) 570x875 x 550 mm. 10 Cft. b) 775 x900 x 775 mm. 20 Cft. c) 825 x1200x 825 mm. 30 Cft. d) 900x1720x800 mm. 45 Cft.

Optional Accessories: (Extra cost) Automatic voltage stabilizer 3 KV A (must)




MORTUARY CHAMBER   (3369)

Designed to store cadaverous under cool conditions to prevent decomposition. Double walled construction, outer made out thick mild steel sheet duly finished in stoving enamel paint and inner made out of stainless steel sheet. the gap between the two is filled with glass wool for temperature insulation. F ront opening covered with double walled door with magnetic gasket, lock & key and handle. Individual chambers are provided with independent locks with duplicate keys, T rays to carry dead bodies are provided with handles on both ends travel on rollers fitted on ball bearings for smooth movements. The refrigeration unit is fitted on the rear top. T emperature of -20C to 4C is maintained by hermetically seated compressor unit and is controlled by an automatic electronic digital temperature controller -cum-indicator . Panel is provided with indicators & controllers etc. Complete with cord & plug . The unit work on 220V olts, 50Hz AC single phase.
a) Single Body
b) Two bodies
c) Three bodies

Optional Accessories: (Extra Cost)
i) Outer made of stainless steel sheet
ii) Automatic voltage stabilizer 3KV A







© J S Exports 2009. All Rights Reserved.
