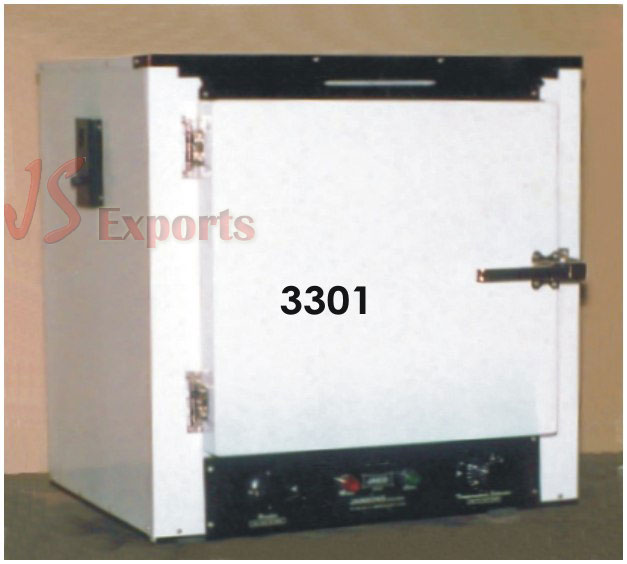

Three side heating elements. Standard double wall fabrication.
Inner chamber made of anodized aluminium or highly polished stainless steel sheet. Exterior fabricated out of thick mild
steel sheet duly finished in stoved enamel off-white paint or paste mat finish colour combinations. The gap between the walls
is filled with- special grade glass -wool for heat insulation. Inner chamber is ribbed for placing shelves at convenient
levels. P rovided with two or three removable shelves. special elegant door closing device has bee n provided. Nichrome wire
heating elements provided on three sides attain quick and uniform heating in range of 50șC to 250șC ±1șC controlled by
capillary type thermostat. L -shaped thermometer is built -in type. Control panel is provided with selector switch of high or
low rates of power , thermostat control knob and indicators for mains & thermostat. Supplied with cord and plug . The
equipment is suitable to operate on 220 V olts 50Hz, single phase AC. | | Chamber size in mm | No. of shelves | | a) | 300x300x300 | 2 | | b) | 275x400x400 | 2 | | c) | 350x350x350 | 2 | | d) | 400x400x400 | 2 | | e) | 450x450x450 | 2 | | f) | 600x450x450 | 2 | | g) | 600x600x600 | 2 | | h) | 900x600x450 | 2 | | i) | 900x600 x 600 | 2 | | j) | 900x900x900 | 2 |
Optional Accessories:: (Extra Cost)
| i) Air circulating fan. | ii) Timer 0-24
hours. | | iii) Digital temperature Indicator | iv) Digital temperature
indicator-cum-Controller. |
|
