HUMIDITY CABINET

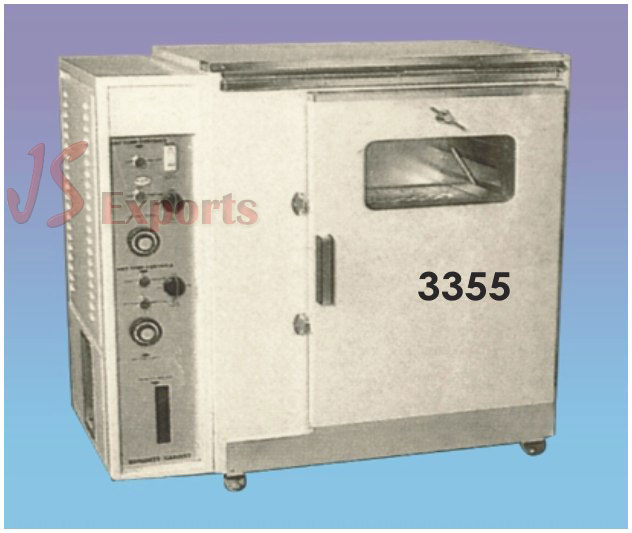

HUMIDITY CABINET (3355)

Double walled construction, inner made out of richly anodized aluminium or stainless steel sheet and outer that of thick mild steel duly finished in stoving enamel paint. Gap is filled with glass wool for temperature, insulation. A circulation fan has been provided to maintain uniform temperature & humidity through out the chamber . Nichrome heating elements are provided to heat the chamber effectively . Temperature range from ambient to 60șC is controlled by a thermostat. L-shaped thermometer is provided to indicate temperature in the chamber . Humidity is created by a generating steam by heating water in a stainless steel reservoir by an immersion heater and subsequent condensation in circulating air . the humidity is controlled by a humidistant from atmospheric humidity to 95% ±3% RH. The double walled door has bee n provided with a double wall clear glass window for observation in the chamber without opening the door and disturbing chamber conditions. A control panel has been provided on left of the body and is provided with all control switches phase. Supplied complete with cord & plug but without hygrometer .

OPTIONAL : (Extra Cost) :
i)Hygrometer (Humidity indicator),
ii) Digital temperature Controller-cum-Indicator ,
iii) Digital temperature indicator,
iv) Automatic voltage stabilizer 3 KVA.

Models: Chamber size :
a) 455 x 455x 455 mm. (Ht.)
b) 455 x 455x710 mm. (Ht.)
c) 605 x 605x605 mm. (Ht.)
d) 605 x 604x 910 mm. (Ht.)
