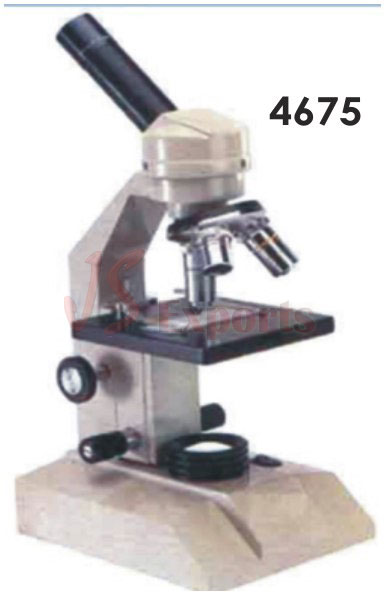

45 degrees Inclined head rotatable through 360º, fitted on to a heavy cast
body with built- in illumination system. Interchangeable with binocular head or straight t ube for micro photography.
Quadruple revolving nose piece with positive click stops. Plane rectangular stage with separately attachable mechanical
stage. Vertically rackable bright field Abbey's N.A. 1.3 condenser with Iris diaphragm.
Eye pieces: 10x
WF & 5x or 15x HY.
Objectives: 4X ,10x,40x,100x oil immersion.
Illuminator: 20Watts halogen lamp with solid
state variable control.
Supplied in thermofoam case or lockable wooden cabinet.
