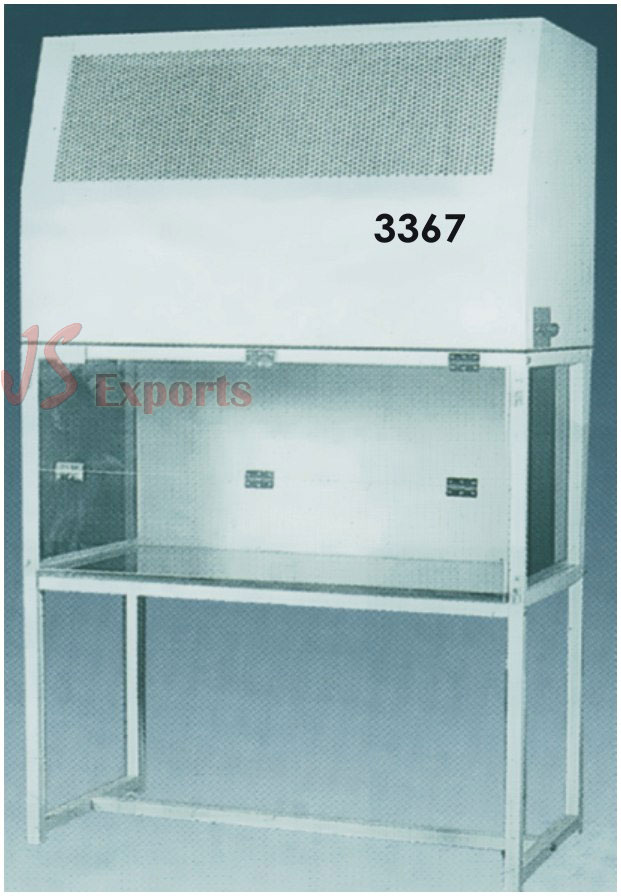

Laminar flow principle involves double filtration of air through
coarse pr e-filters (up to 5 microns) and Heat filter (down to 0.3 microns) for filtration of biological and particulate
contaminants. A constant uni- directional air flow is drawn from atmosphere and passed through pre and heat filters on the
work surface. F abricated out of reinforced ply board which is clab in from out side in laminated sheet and inner exposed
areas are finished in epoxy paint. T able top covered with non-glaring laminated sheet or stainless steel sheet (optional).
Side panels are fixed and are made out of transparent acrylic sheet. The front door is folding type and made of thick acrylic
sheet. (Optional) Stand is built in type or detachable. Blower unit has A U or equivalent motor and is dynamically balanced
with minimal sound & vibration level. Fluorescent lighting is also provided. A suitable UV tube is provided for
sterilization. An acrylic block type manometer to measure static pressure in the chamber has been installed. T wo way gas tap
for gas line has also been provided.
Working chamber sizes in mm.
a) 600x600x600 mm)
b) 900x600x600 mm)
c) 1200x600x600 mm)
d) 1800x600x600 mm)
Optional Accessories: (Extra Cost)
i) Stainless steel table
ii) Folding front door made of acrylic sheet.
