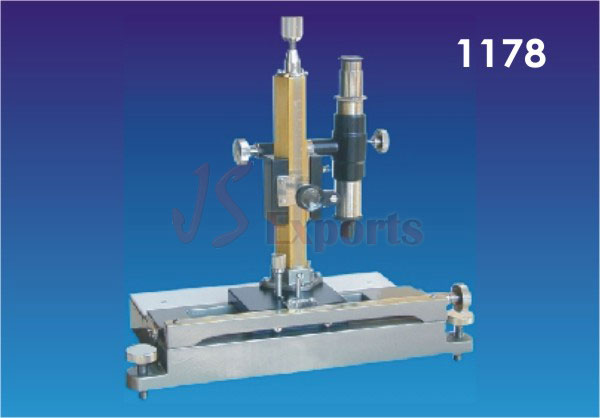

VERNIER MICROSCOPE (TRAVELING MICROSCOPE) (1178)
Horizontal and vertical scales of stainless steel. The cast iron
base is fitted with leveling screws with the top duly machined over which slides a metal carriage. Slide can be clamped at
any position by means of clamping screw. Fine adjustment for final reading is with a micrometer screw. A vertical slide
operating in a similar way is fitted on the horizontal carriage. The microscope with rack and pinion is fitted on this
vertical carriage and can be clamped in a vertical or horizontal position. Stage for placing objects for measurement is
fitted with perspex plate. Achromatic lenses have been used. Slides travel 165 mm horizontally and 140mm vertically. Scales
are accurately divided. Vernier reading 0.02 or 0.001mm. The unit is packed in wooden polished
case.
|
|
|
|
|
TRAVELING MICROSCOPE (1179)
A heavy cast iron base fitted with leveling screws top machined over which slides a metal
carriage which can be clamped at desired position. The stage carries a vernier that travels over a stainless steel scale
graduated in mm 0 to 16.5cms. A gunmetal pillar fixed to the stage has an embedded S.S. Scale graduated 0 to 15cms and
carries a vertical traveling carriage with vernier. Horizontal stage for placing objects is fitted with milky plate. The
microscopic tube on vertical traveling carriage is focused by rack line graticule. Vernier read- in .01 mm supplied in wooden
case. The above list does not include the entire range of instruments available, please feel free to request other items
throughout this field.
|
|
|
|
|
VERNIER MICROSCOPE, COORDINATE (1180)
With horizontal and vertical scale both reading to 0.001mm. Horizontal scale 0
to 170 x 0.05 mm and 0 to 100 x 0.5mm vertical scale, both of which can be easily read to 0.001 using the double length
vernier. A coarse adjustment and a fine adjustment The microscope body may be rotated through 180 deg. And the draw tube
extended to enable the telescope objective accessory to be fitted. Overall dimensions: 295 x 185 x 300mm. high. Supplied in
wood case.
|
|
|
|
|
|

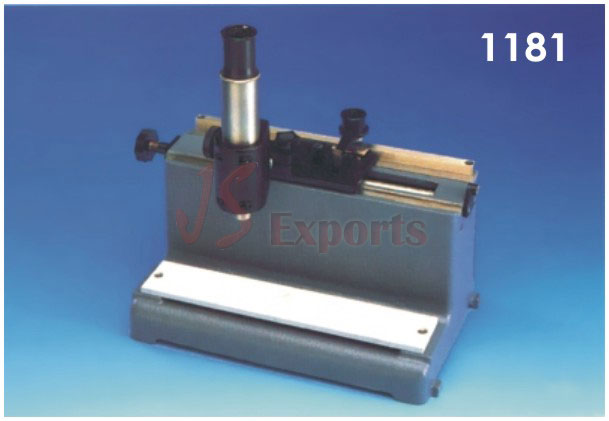

MICROSCOPE STANDARD (1181)
In this microscope a dovetailed cast iron carriage slides on a heavy cast iron base. In
the carriage a locking arrangement is provided to rest coarse motion when fine motion screw is used. By successively locking
and unlocking, motion in the total traverse can be provided by the slow motion screw. Two reamed holes are provided with
clamping screws to hold the microscope in either vertical or horizontal plane. Horizontal movement 160mm. Vertical movement
can be kept vertically. Least Count 0.01mm, Working distance 50mm.
Eyepiece 10X Ramsden, 90º cross line
reticle, Objective 30X of FL 15mm.
Total magnification 30X. Supplied in wooden
case.
|
|
|
|
|
NEWTON'S RING MICROSCOPE (1182)
This is a compact instrument with full arrangement for conducting Newton's ring
apparatus. A standard microscope with 30X magnification is provided with a rotatable cross-line and the eye piece can be
focused at the individuals requirements. The microscope tube unit can be raised or lowered and clamped at any desired
position. The focusing of the microscope is through Rack and Pinion. The longitudinal movement of the microscope saddle for
the purpose of measurement of the rings is done by rotating the drum provided. The 26mm movement can be read by the scale and
divided drum to 0.001cm. This set consists of one optical flat glass and one plano-convex lens (100mm radius) arranged inside
a metal case resting over the stage of the instrument which is adjustable for the alignment of the measuring line. The
condenser lens is provided infront of the reflector. In case the ring set is removed from the stage, the instrument can be
used as a simple compact measuring microscope. The whole instrument is supplied in a
box.
|
|
|
|
|
|

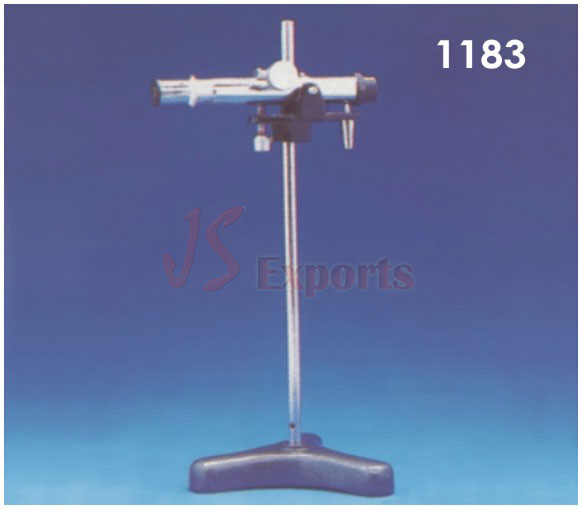

READING TELESCOPE (1183)
The Telescope itself is fitted with an achromatic objective of F.L. 178mm with clear
aperture of 23mm and 8X Ramsden eye piece with a 90º cross line reticle. The focusing is done by rack and pinion
mechanism, with a range from 1000mm to infinity. The arrangement is mounted on a steel pillar and fitted on a heavy cast iron
base.
|
|
|
|
|
|

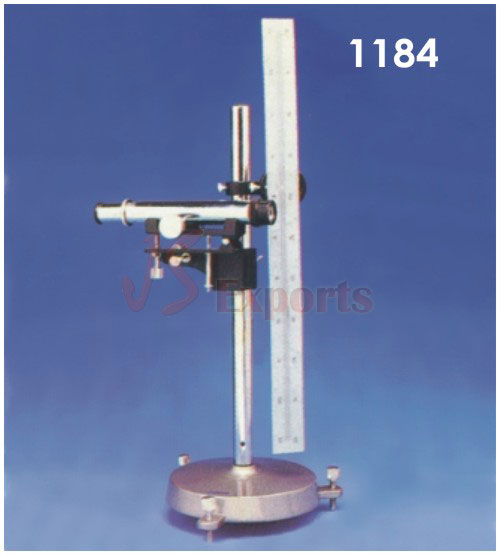

STANDARD READING TELESCOPE WITH SCALE (1184)
The telescope is mounted on a specially designed carriage with support
ring to stop abrupt falling. The carriage is fitted with two adjustable screws for precise vertical and horizontal
positioning. This arrangement is mounted on a 25mm dia, 450mm. long steel pillar, fitted on a cast iron base with leveling
screws. A scale holder is provided with scale.
|
|
|
|
|
|

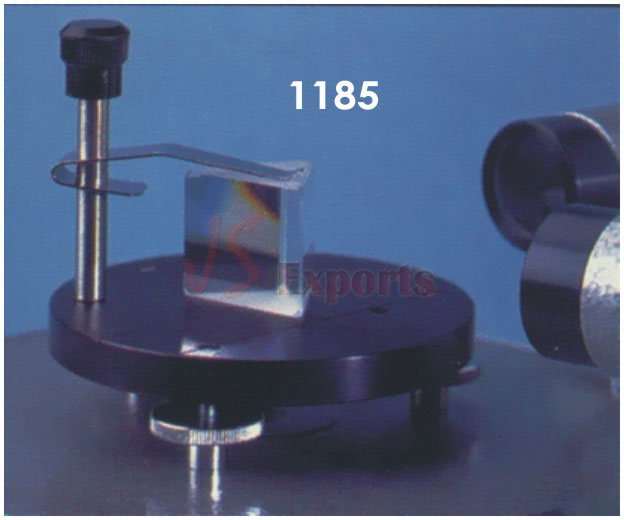

PRISM FOR SPECTROMETER (1185)
Equilateral optically worked two faces polished, crown glass refractive index
1.5165. and Flint glass refractive index 1.5793.
(a) 25 x 25mm height
(b) 32 x 32mm height
(c) 38 x 38mm
height
|
|
|
|
|
|

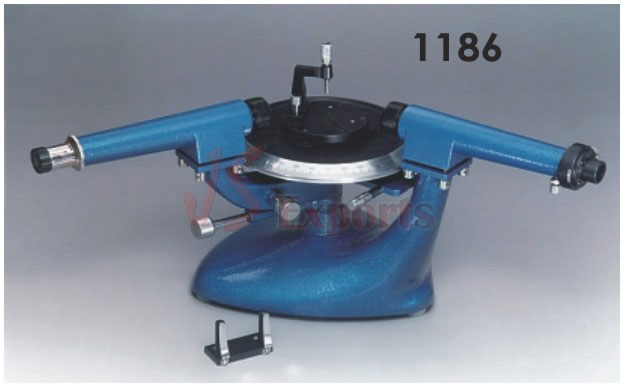

SPECTROMETER (1186)
The base integral with collimator tube support, carried the swinging telescope arm provided on a
bearing with spring loaded and thrust plates, this type of bearings eliminates any slack which would otherwise develop with
wear. The collimator and telescope tubes are one-piece precision casting in light alloy, concealed helical-action focusing
devices are provided. The collimator slit with spring-loaded jaws is of a new and robust design which ensures retention of
the initial accuracy. The graduated prism table support, 18cm dia, is divided in degrees, the vernier, reading of 0.1degrees,
is fixed to the telescope arm. Large diameter clamping knobs are fitted for movement control and fine adjustment is provided
for the telescope.
All bright parts are chromium plated with the base and tubes in synthetic (hammer)
finish.
|
|
|
|
|
|

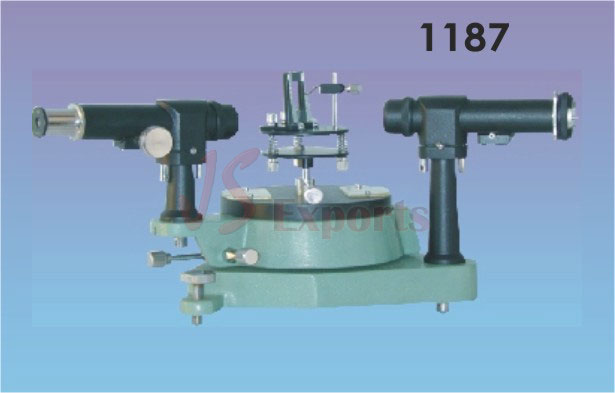

SPECTROMETER (1187)
Comprises a collimator tube with adjustable slit and a rotatable telescopic tube. Graduated
circular scale 127mm dia fixed to the table double ended vernier to read to 1 min. of arc. is attached to telescopic tube.
Both the tubes have fine adjustment screws and release of clamping screws enables coarse adjustment by hand. Telescope and
collimator are fitted with 32mm clear aperture achromatic glasses and have rack and pinion focusing. Telescope fitted with
10x Ramsden eyepiece and a cross line graticule. The prism table marked with lines to assist positioning of prism has
interchangeable clamping unit for prism and diffraction gratings.
Complete in polished wooden
case.
|
|
|
|
|
|

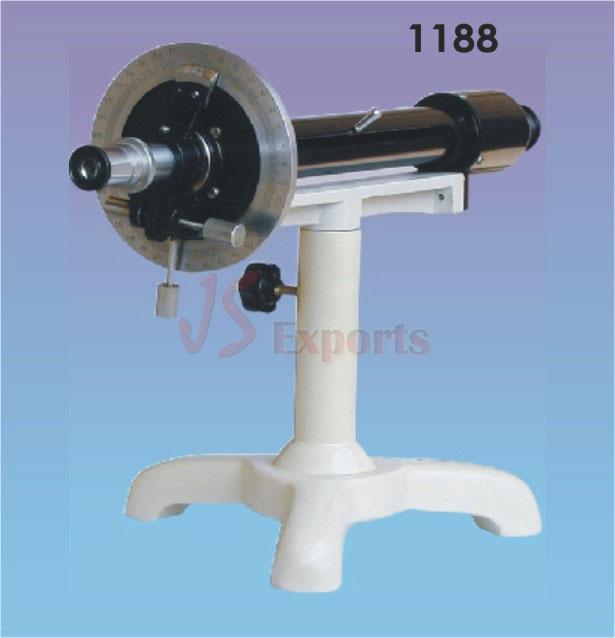

POLARIMETER (1188)
For the measurement of angle of rotation of optically active substance in solution i.e. angle
through which the plane of polarised light is rotated on passing through a specified length of solution of known
concentration. Specific rotation may then be determined. The circular head is attached near the analyser and vernier movement
on the scale enables the reading of optical rotation accurate up-to the accuracy of 0.1.
Soleil's Bi-Quartz Laurents
half shade device which makes the instrument accurate and simple for use with white light (day light) or sodium light. The
polarimeter tubes made from Borosilicate glass with fittings at both ends. The tube end covers with glass round disc,
optically true with rubber washers to make it leakproof.
Complete with a set of two polarimeter tubes (100mm and 200mm)
in wooden case, nicely polished.
|
|
|
|
|
PLANE MIRROR STRIP (1237)
Black silvered with protective coating. | a | b | c | | Size
: | 75 x 25mm | 150x50mm | 100 x 40mm |
|
|
|
|
|
MIRROR SUPPORT BLOCK (1238)
Simple wooden block 35 x 35 x 35mm with slot to take mirrors.
|
|
|
|
|
|

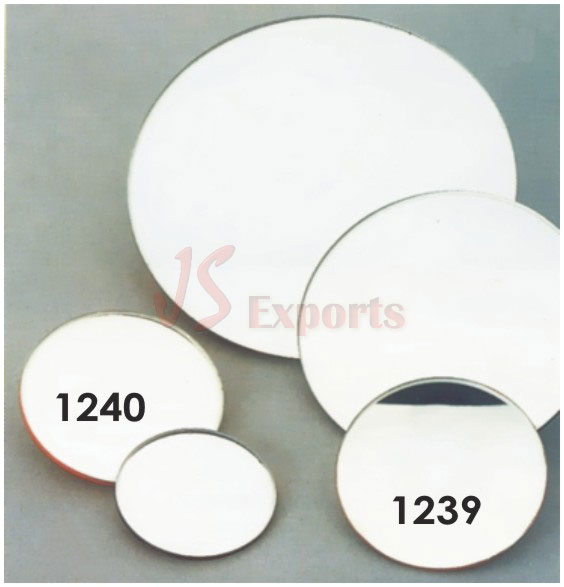

CONCAVE MIRRORS (1239)
Optically worked, silvered back with protective coating.
(a) Diameter 50mm F.L. i) 100mm
ii) 150mm iii) 250mm
(b) Diameter 75mm F L. i) 100mm ii) 150mm iii) 250mm
|
|
|
|
|
SEMICIRCULAR BLOCK (124
9)
Clear all faces polished. | | Glass | Acrylic | | A | Size: | 100x18mm | 100x18mm | | B | Size: | 100x12mm | 100x12mm |
|
|
|
|
|
|
CONVEX MIRRORS (1240)
Optically worked, silvered back with protective coating.
(a) Diameter 50mm F.L. i) 100mm
ii) 150mm iii) 250mm
(b) Diameter 75mm F L. i) 100mm ii) 150mm iii) 250mm
|
|
|
|
|
|

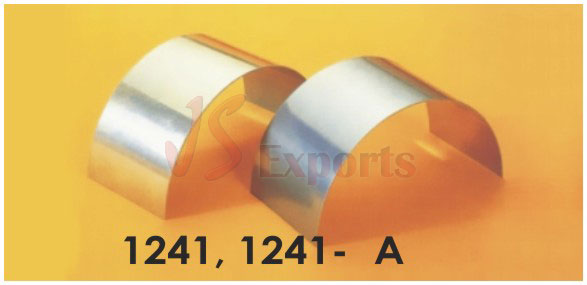

CYLINDRICAL, MIRROR CONVEX (1241)
Semi-circular mirror, 150mm dia x 25 mm high. Made of stainless steel.
|
|
|
|
|
|
CYLINDRICAL, MIRROR CONCAVE (1241-A)
Semi-circular mirror, 150mm dia x 25 mm high. Made of stainless steel.
|
|
|
|
|
|

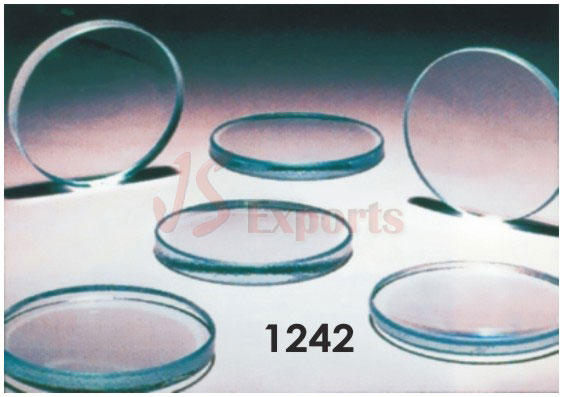

LENSES DOUBLE CONVEX/CONCAVE (1242)
Optically worked ground edges.
(a) Diameter 50mm F.L. 50mm
(b)
Diameter 50mm FL. 100mm
(c) Diameter 50mm F.L. 150, 200, 250, 300mm
|
|
|
|
|
|

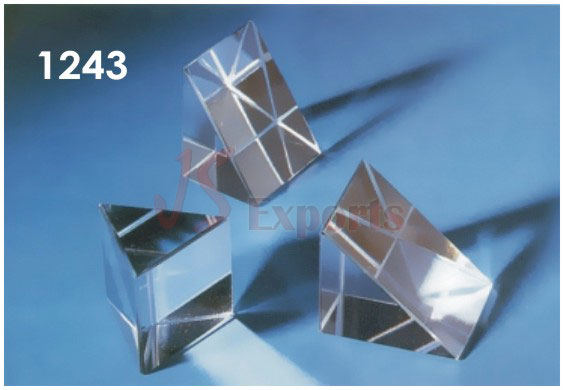

GLASS PRISM RIGHT ANGLE (1243)
90º 45º 45º prism made from moulded glass. | (a) 38mm height | (b) 50mm
height |
|
|
|
|
|
GLASS BLOCK RECTANGULAR (1244)
A bubble free glass block polished from all sides. | Size: | (a) 75 x 50 x 18mm | (b) 100 x 60 x l8mm
|
|
|
|
|
|
SET OF ACRYLIC PLASTIC BLOCKS (1245)
Clear acrylic plastic blocks 20mm thick with bottom surface finish
ed
in white to show ray tracks and all other surfaces fully polished. The set comprises seven blocks as follows.
| (a) | Rectangle 70x50
mm. | | (b) | Triangle 90x45x45, 75mm hypotenuse. | | (c) | Triangle 60x60x60, 57mm
side. | | (d) | Semi-circle 75mm diameter. | | (e) | Bi-convex 75mm long, curved
faces,115mm radius. | | (f) | Bi-convex 75mm long, curved faces, 145mm
radius. | | (g) | Bi-concave 75mm long, curved faces,115mm
radius. |
|
|
|
|
|
PERSPEX BLOCK, RECTANGULAR (1246)
Rectangular of clear perspex, all faces fully polished. Size:115x60 x20mm approx.
|
|
|
|
|
|

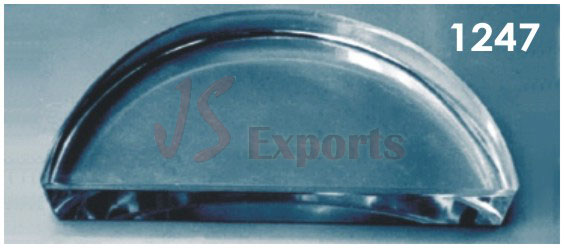

PERSPEX BLOCK, SEMICIRCULAR (1247)
Made of clear perspex, all faces nicely polished 80mm dia and 20mm thick
approximately.
|
|
|
|
|
ACRYLIC BLOCK, RECTANGULAR (1248)
Clear acrylic all faces fully polished. | a | b | c | | Size
: | 75x50x18mm | 100x65x18mm | 125x65x18mm |
|
|
|
|
|
|

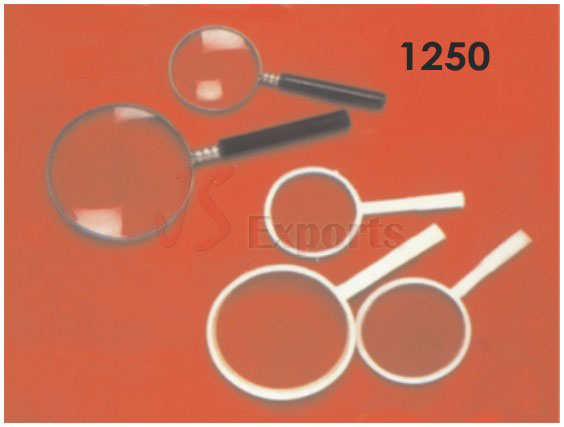

MAGNIFYING, READING GLASS (Handy) (1250)
With metal frame and bakelite handle, chrome plated handle, packed in
cardboard box.
| A | B | C | D | | Diameter: | 50mm | 75mm | 100mm | 100mm | | Magnification: | 3.5X | 2.5X | 2.5X | 2.25X |
|
|
|
|
|
|

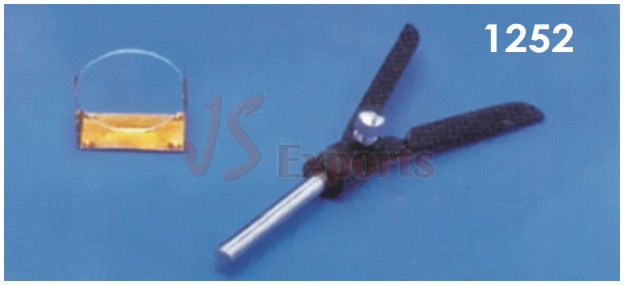

LENS HOLDER (1252)
Comprising a metal holder with sides grooved to hold lens or mirror. The holder is finished in
matt black and is free standing for bench use to hold lens 50 mm
dia.
|
|
|
|
|
|

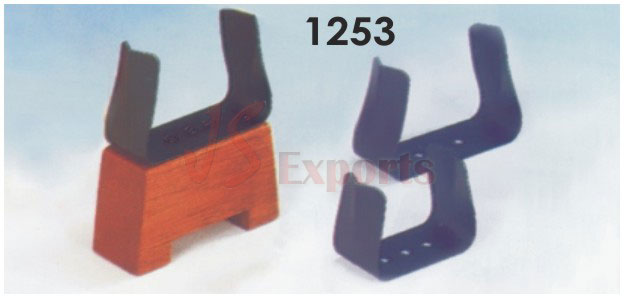

LENS/FILTER HOLDER (1253)
These Optical Bench Holders allow for precious positioning of lenses, filters, targets and
other optical elements. The holders may be attached directly to our 0.50" post or to any of our small base plates.
Delrin clamp pad does not scratch optics.
|
|
|
|
|
|

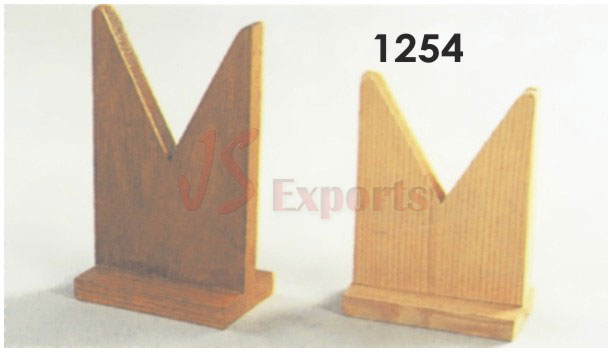

LENS HOLDER WOODEN (1254)
V-shaped slot on a rectangular wooden base. To hold 50mm/75mm/100mm lens or
mirrors.
|
|
|
|
|
DEMONSTRATION MODEL OF ASTRONOMICAL TELESCOPE (1255)
Complete with 38mm dia lenses in metal holders mounted on
wooden board which has a diagram showing the course of rays.
|
|
|
|
|
DEMONSTRATION MODEL OF GALLILIAN TELESCOPE (1256)
Complete with 38mm double concave lens eyepiece and a double
concave lens
objective in metal holder mounted on wooden board having a diagram showing the course of rays.
|
|
|
|
|
ASTRONOMICAL TELESCOPE (1257)
50mm dia achromatic objective glass, 10x Ramsden eyepiece, focusing by rack and
pinion. Supplied with a folding tripod stand with adjustable height.
|
|
|
|
|
|

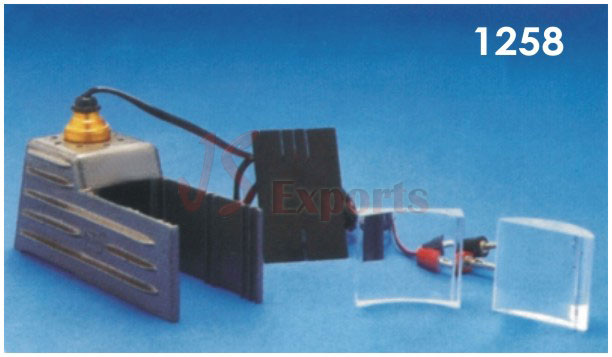

RAY OPTICS BOX (1258)
Black finish metal box, with 12V 24W straight filament lamp. The lamp holder, with 1mt. of
twin flex wire is mounted in metal bridge piece. The enameled casted body has slots to support a cylindrical lens and a
triple slit screen. Extra slots are provided for filters.
Dimensions 182 x 61 x 115mm high.
The box is supplied
complete with lamp and triple slit but without lenses or filters.
|
|
|
|
|
|

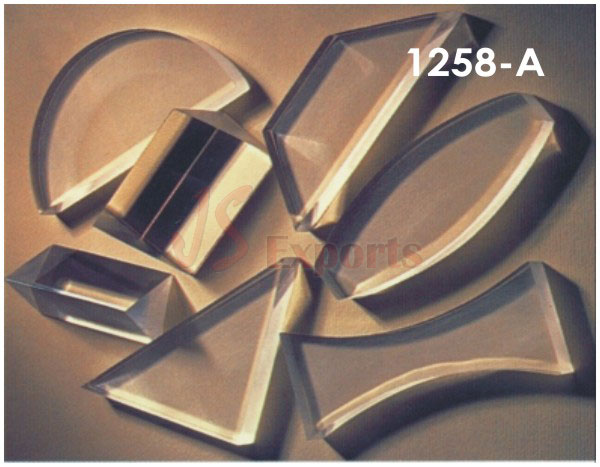

LIGHT BOX AND OPTICAL SET (1258-A)
This kit is very useful for reflection, refraction and colour mixing
experim
ents. The light box consists of a light source (12V, 24W lamp), producing convergent, divergent or parallel beam.
On one end, an adjustable convex lens (for parallel beam) and on the other end, a triple aperture system for colour mixing
experiments (lateral aperture are provided with adjustable hinged mirror). All apertures in the box are provided with
vertical channels to hold slit plates and colour filters. The optical set includes Acrylic blocks, Set of three mirrors, two
slit black plates, one with three narrow slits at one end and one narrow slit at the other end. Another black plate with four
narrow slits at one end, one wide slit at the other end and set of seven mounted colour
filters.
|
|
|
|
|
|

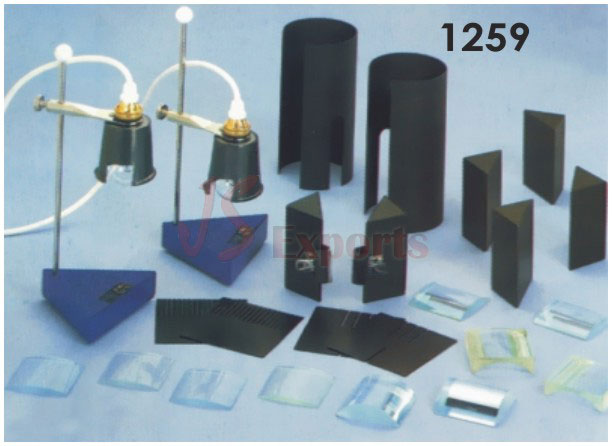

RAY OPTICS KIT (1259)
Kit consists of two lamp holders, each in metal shade with two axial slots and mounted on
metal support rod. Holder complete with approximately 1.2m 2-wire P
.V.C. covered cable and 12V, 24W axial filament lamp.
One each right and left hand
cylindrical lamp shields, in matt black finish light alloy sheet with slot parallel to axis.
Two black “combs”, with 17 equi-speed parallel slots, two black plastic plates, each with single and triple slits, two comb
and plate holders, a spring loaded clip mounted on metal support bracket, four metal light-barriers, four each plano convex
cylindrical lenses, 50 x 50mm, +7D, two each cylindrical lenses 50x50mm, respectively, plano-convex +10D, +17D, planoconcave
-17D.
|
|
|
|
|
|

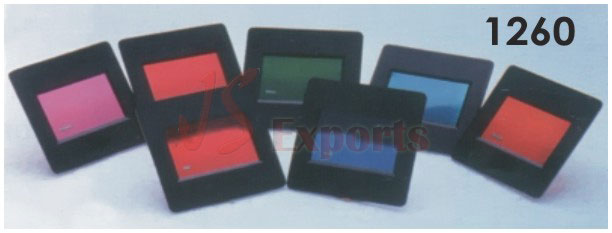

SET OF COLOUR FILTERS (1260)
A set of three primary and four secondary colour filters suitable for use with ray box
mounted in card board frame size 50 x 50 mm. Plastic mounts also available.
|
|
|
|
|
PIN HOLE CAMERA (1261)
To illustrate images produced by small apertures. Comprising a polished wooden box
|
|
|
|
|
|

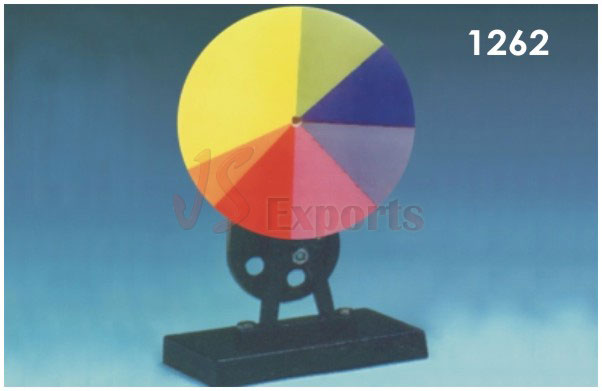

NEWTON’S COLOUR DlSC APPARATUS (1262)
Demonstrates that mixed spectral colours produce white when rotated rapidly.
Comprises of a metal disc 150mm dia having 7 colours (VIBGYOR) in their right proportions, mounted on a metal
stand.
|
|
|
|
|
|

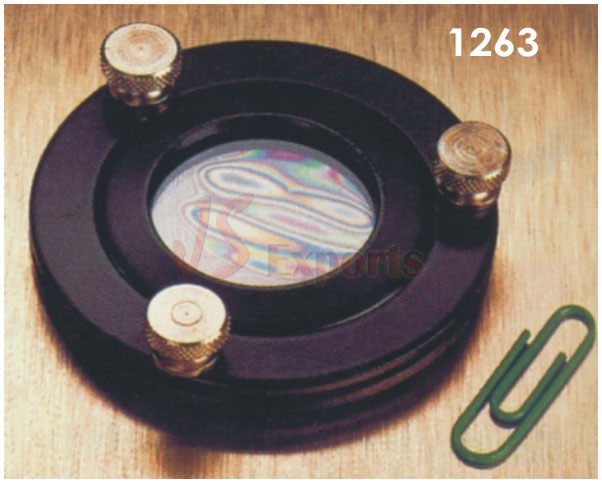

NEWTON’S RING APPARATUS (1263)
Comprises a plano-convex lens 60mm dia and l00cm focal length. On a flat glass plate
equal dia. Both enclosed in a ring frame with compression adjusting screws.
|
|
|
|
|
|

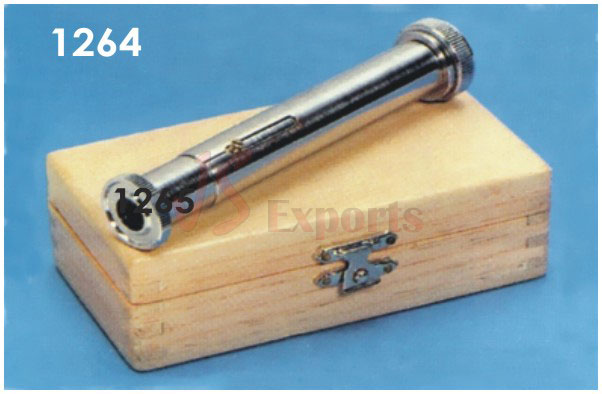

SPECTROSCOPE, Simple (direct Vision Hand) (1264)
A wide spectrum through 10x10mm size, 3 element type optical glass
prism, telescopic focusing brass body, precision slit adjustable by knurled head rotatable
ring.
|
|
|
|
|
SPECTROSCOPES WITH SCALE (Direct Vision) (1265)
Direct wave length readings 400nm to 750nm each div. represents 5nm,
with sodium D-line scale and spectrum is viewed in the same field. Precision slit and focusing control with D-line
adjustments for error free readings.
|
|
|
|
|
SPECTROSCOPE (1266)
A simple and convenient spectroscope for taking direct wavelength readings. Five prism system.
The instrument gives a dispersion of 10 degrees. The slit is adjustable and a focusing adjustment provided. When the
spectroscope is in operation an illuminated scale is seen in the field of view. The divisions on this scale represent 100 A
and are numbered. Scale ruling 400-700 mu. A case is provided.
|
|
|
|
|
|

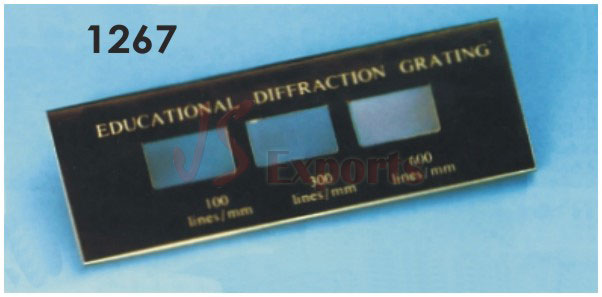

DIFFRACTION GRATINGS (1267)
Photographic replica gratings mounted on plate glass and suitable for visual. Grating
size, 25 x 25mm, on glass plate 50 x 38mm.
The gratings are of:
(a) 300 lines/mm
(b) 600lines/mm.
(c)
2400lines/inch.
(d) 7500lines/inch.
(e) 15000lines/inch.
|
|
|
|
|
|
OPTICAL BENCH WOODEN (1268)
candle holder, pin hole plate, ground glass screen, wire gauze screen and a needle stand
with index mark.
|
|
|
|
|
|
OPTICAL BENCH, 1 meter (1269)
One meter long, for advanced research work consists of two rods, one stainless steel
and one chrome plated. The stainless rod is engine divided in mm. These are One meter long, for advanced research work
consists of two rods, one stainless steel and one chrome plated. The stainless rod is engine divided in mm. These are
supported on heavy cast iron feet, with leveling screws. F our special designed metal sliders having a fine index mark
enables reading to be taken on the scale with ease supported on heavy cast iron feet, with leveling screws. F our special
designed metal sliders having a fine index mark enables reading to be taken on the scale with ease and accuracy. The sliders
are machined metal so they slide accurately and smoothly and accuracy. The sliders are machined metal so they slide
accurately and smoothly on the’ bed. Two of the sliders have transverse slow motion adjustment. Complete with on the’ bed.
Two of the sliders have transverse slow motion adjustment. Complete with 6 accessories (two lens holders, two optical pins;
one candle holder and one screen 6 accessories (two lens holders, two optical pins; one candle holder and one screen ground
glass).
|
|
|
|
|
OPTICAL BENCH (1½ meter) (1269-A)
Same as above, but 1½ meter long.
|
|
|
|
|
|
CROSS WIRES (1270)
A circular blacked metal screen 75mm dia, with a 10mm dia aperture and cross wires
|
|
|
|
|
SODIUM VAPOUR LAMP (1272)
complete with vacuum jacket 35Watts. For producing monochromatic light at a high
intensity. Each lamp has a glass envelop with an inner discharge tube containing the gas or vapour, and two electrodes. The
envelope is mounted on an E.S. cap, providing an arc centre height of 110mm approx. Each lamp is fully interchangeable, no
adjustment being required.
|
|
|
|
|
MERCURY VAPOUR LAMP (1273)
80 watts.
|
|
|
|
|
LAMP HOUSE AND TRANSFORMER (1274)
Heavy base with 500x12.5mm, anodized aluminium rod (upright) carrying lamp house
and aperture with holder, adjustable for height.
Complete with transformer but without sodium
lamp.
|
|
|
|
|
RAY TRACK APPARATUS (1275)
Wood board with matt white surfaces, mounted on plastic feet, carries a circular scale
with 0-360º, four quadrants 0-90º graduated every 2º , removable turntable 170mm. dia with 2 lines at right angles and a Ray
Box with 12V, 24W bulb. Supplied with a cylindrical convex lens focal length 75mm and two double screens, giving one wide
slit and one each single, three and five slits.
|
|
|
|
|
SPECTRUM TUBES (1276)
200mm long, straight form, with side electrodes and 50mm long fine capillary in the middle.
Filled with Acetylene Vapours, Carbonic Acid, Carbon Dioxide, Chlorine Hydrogen Sulphide, Nitrogen, Sulphurous Acid, Xenon
and Methyl Alcohol.
|
|
|
|
|
ROTATABLE OPTICAL DISC HARTLEY'S (1277)
A 300mm diameter white painted steel disc marked from 0-360º at every 1º,
with centre mark, on a stable cast iron base. The main disc and the lamp house (with 12V, 24W bulb) can be rotated and held
in any desired position. With the lamp house, a rotatable disc with single, double, triple and quadruple slits and with
adjustable lens carrier with lens for divergent, parallel or convergent light beams is provided. Optical elements provided
for reflection are 50x25mm plain glass mirror and a polished plated metal cylindrical mirror. Optical elements for refraction
are semicircular, biconvex, biconcave, right angle prism and a rapezoidal acrylic blocks. These optical elements have
powerful magnets attached for fixing of blocks to disc.
a. Set of 6 Optical elements, packed in case for use with above
optical disc.
|
|
|
|
