Physics > Magnetism and Electromagnetism

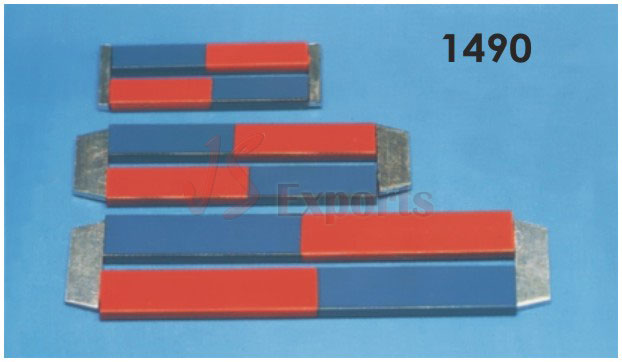

BAR MAGNETS   (1490)

Made of steel 15 x 5mm in pairs red painted polarity marked with keepers.
Size:
a) 50mm long
b) 75mmlong
c) 100mmlong
d) 150mm long

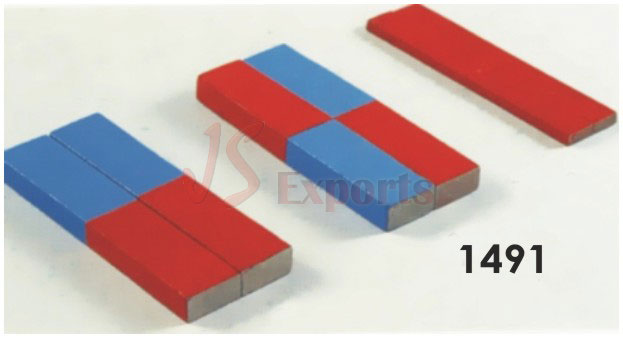

BAR MAGNETS, ALNICO   (1491)

Cobalt steel, in pairs, half red and half blue painted (for N and S) very strong, with keepers.
Size in mmLengthWidthThickness
a)50138
b)751510
c)100138



CYLINDRICAL MAGNETS   (1492)

S.S .12mm dia in pairs, half red and half blue for N & S. Spray painted with keepers. Size: a) 100mm b) 150mm



CYLINDRICAL MAGNETS, ALNICO   (1493)

Made of cobalt steel, l0mm dia. in pairs, half red and half blue painted,(for N and S) very strong, with keepers. Length in mm: a) 50 mm b) 75 mm c) 100 mm

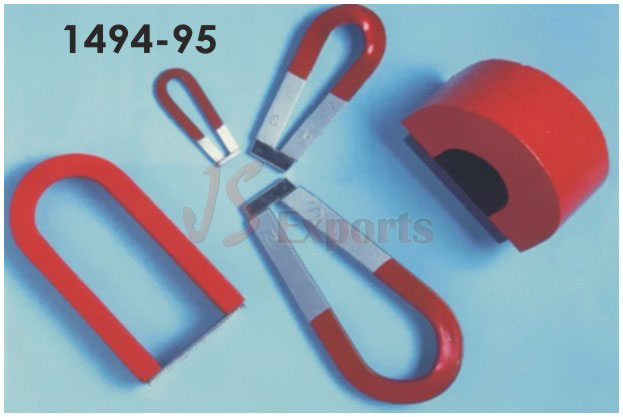

HORSE SHOE MAGNETS   (1494)

Made of steel, half red and half blue (for N and S) spray painted, with keeper. Length x Width x Thickness: (a)50x12x5 (b)75x12x5 (c)100x25x6


U-SHAPE MAGNET   (1495)

Made of special magnetic steel.



U-SHAPE MAGNETS, ALNICO   (1496)

Made of cobalt steel,12x6 mm, half red arid half blue  painted, very strong, with keeper.
Length in mm: (a) 50 mm  (b) 75 mm  (c) 100 mm



RING MAGNETS, CERAMIC   (1497)

Size mm
a) 32x16x18e) 45x22x11
b) 36x18x6f) 53x24x10
c) 36x18x8g) 72x32x10
d) 45x22x8

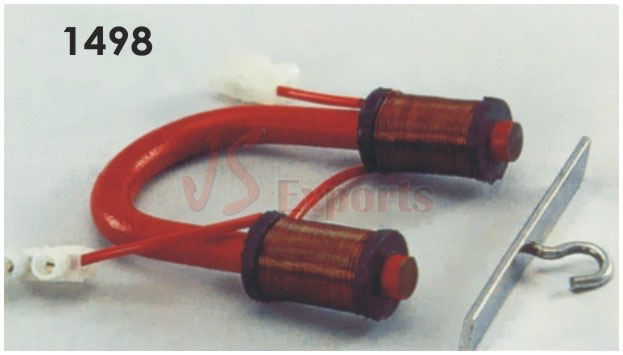

ELECTRO-MAGNET   (1498)

U-shaped steel core, 10cm, with copper-wire windings on both arms using insulating ribbons. Both windings connected in series, and each winding has a terminal. Al so provided is a core with a hook to demonstrate basic principles of electromagnetism.

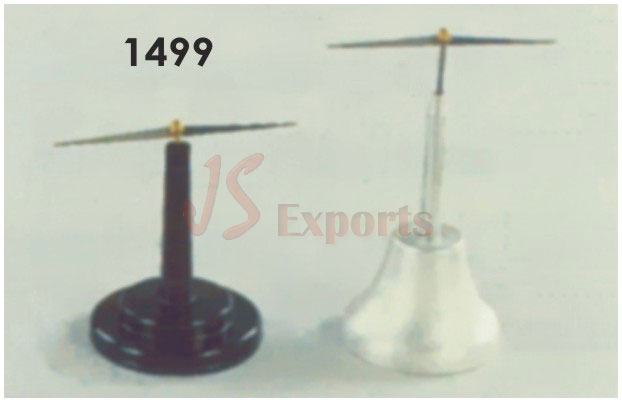

MAGNETIC NEEDLE   (1499)

A carbon steel needle with brass bearing well balanced.
Size:
a) 50mm
b)75mm
c) 100mm



IRON FILINGS   (1500)

Grease-free, fine iron filings packaged in a convenient shaker to allow dispensing without waste. 12 oz package.



STIRRUP   (1501)

Made of brass wire for suspension of magnets length 50mm, height 40mm approx.



NEEDLE STAND   (1502)

With bakelite base, aluminium pillar supporting a steel needle pivot. Height 80mm.

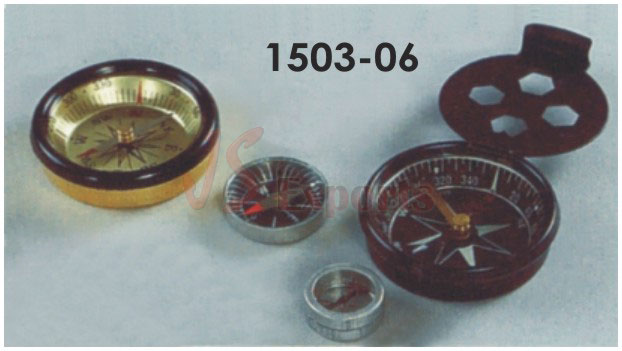

PLOTTING COMPASS   (1503)

In aluminium case.
 a) 12mm dia one side glass
b) 18mm dia both side glass


MAGNETIC COMPASS   (1504)

Both sides glass. A 19mm needle in a aluminium frame, with needle pivoted between upper and lower glass plates. With cross lines.


MAGNETIC COMPASS   (1505)

One  side glass. In plastic or aluminium case, with upper plate of glass. With dial.
a) 13mm
b) 20mm
c) 25mm


MAGNETIC COMPASS   (1506)

Brass or aluminium body, graduated in degrees with compass points marked
a. With Brass body, 45mm dia
b. With hinged cover and lick, 45mm dia.



POCKET COMPASS   (1507)

In aluminium case 50mm dia one side glass with a printed card dial marked with degrees.

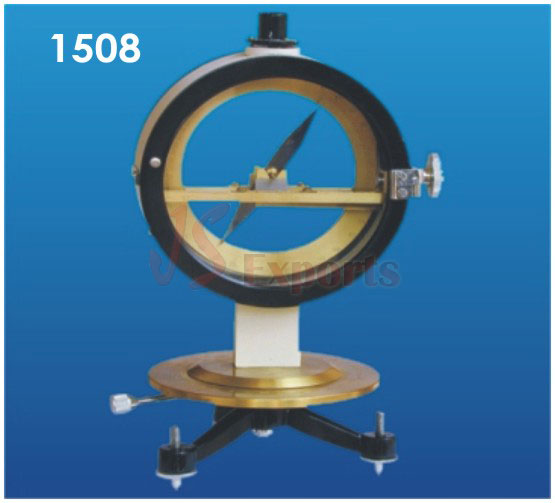

DIP CIRCLE   (1508)

An accurately balanced needle, strongly magnetized is fitted with hardened steel pivot marking in jewels cup bearings. the needle can be easily removed for reversal. The inclinaton scale is of chrome brass graduated in degrees 0-90 four times. The case is made of non magnetic alloy, duco painted base, has easily removable plate glass window and rotates on a heavy brass base, is rotation being measured by a brass chrome dial reading 0-360º. Fitted with leveling screw and spirit level.

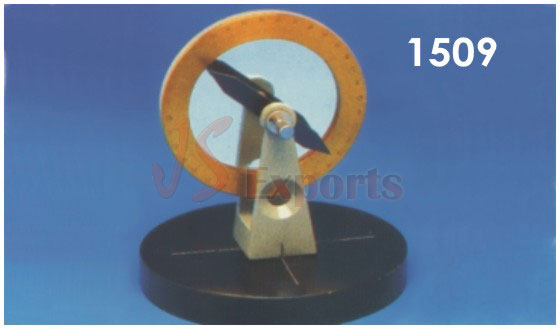

DIP NEEDLE   (1509)

Comprises an aluminium arc printed with degrees 0 to 90 supported in aluminium fork fixed on aluminium base. The fork holding the needle can be rotated on metal/bakelite base to take the angle of dip.

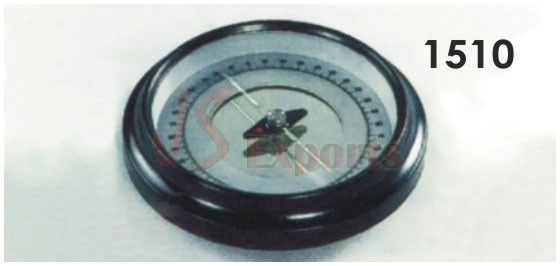

DEFLECTION MAGNETOMETER   (1510)

Comprising a bakelite box 100mm dia with aluminium dial marked with degrees 0- 90º four times, antiparallax mirror and a steel needle pivot at the centre. The short magnetic needle has a jewel bearing and an aluminium pointer for precise reading on the dial. This magnetometer compass box is fitted at the centre of one metre long wooden board with two half metre scales reading from the centre of the compass box complete.

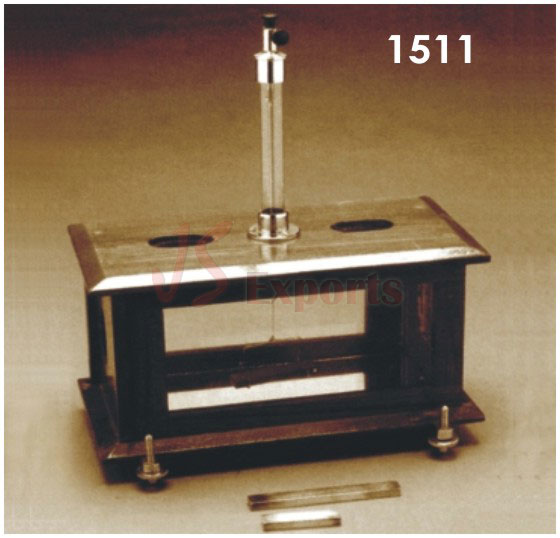

VIBRATION MAGNETOMETER   (1511)

A wooden box with two glass doors. A glass tube supported at the centre on top of the box supports a stirrup with a silk thread. The floor of the box has a mirror with an index line supplied with a 100mm bar magnet and al00mm long brass bar of the same size.

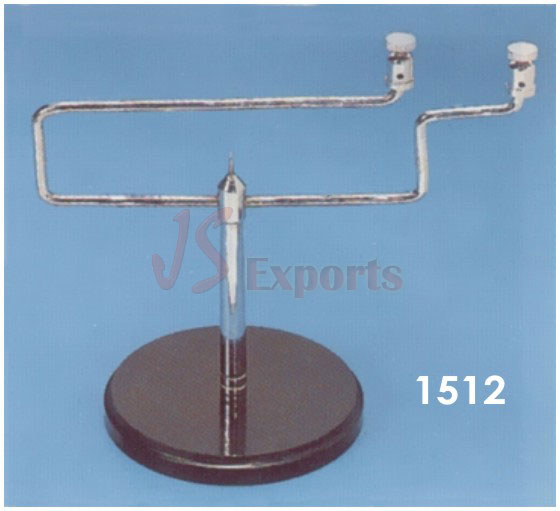

OERSTED’S APPARATUS   (1512)

To show the action of DC current on a magnetic needle 75mm long supported on a pivot mounted on a wooden/bakelite base and surrounded by a rectangle copper rod fitted with terminals.

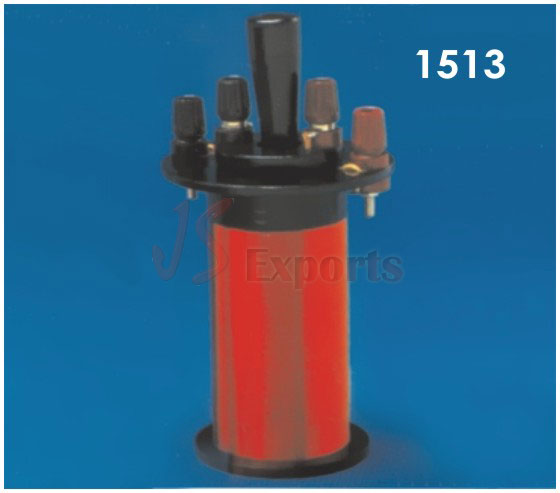

DEMONSTRATION INDUCTION COILS   (1513)

With primary coil of thick gauge enameled wire wound on a former 110x30mm dia. Secondary coil of fine gauge enameled copper wire wound on a former 115x50mm dia. Both coils fitted with 4mm sockets supplied with a soft iron core with a handle.

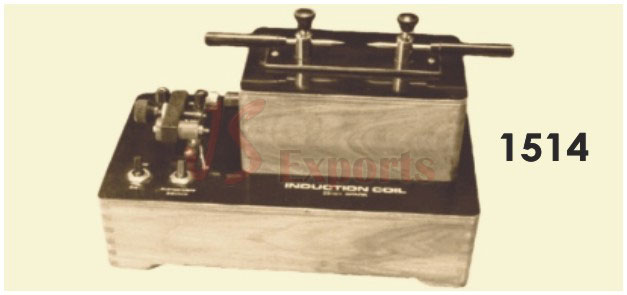

INDUCTION COIL   (1514)

The secondries are wound with fine gauge enamelled copper wire providing heavy in solutions on every layer. Further the coils are housed in wooden box on which the coils are fixed. Handles to get the spark are provided. Adjustable trembler break with points and on/off switch and a connector working on 6-12V. Spark length: a) 25mm b) 50mm c) 100mm


INDUCTION COIL (SOLID STATE)   (1515)

A coil that produces a 3 inch spark. Sliding rods that adjust the spark gap, on-off switch with pilot lamp, polarity reversing switch and power rheostat. Operates on 220V AC.


SOLENOID (Air Core)   (1516)

Used to study electricity and magnetism. Constructed of 550 turns of 16-gauge enameled copper wire wound on a 150mm PVC Core, which can carry 10Amp. intermittently and 5Amp. continuously. Equipped with brass binding posts mounted on rigid PVC end plates. Sizes: a. 38mm IDb. 60mm ID


TANGENT GALVANOMETER   (1517)

A bakelite ring channel 165mm dia with three windings of 2, 50 and 500 turns mounted on a black bakelite plate with four terminals. A nonmagnetic metal cup supports a box.

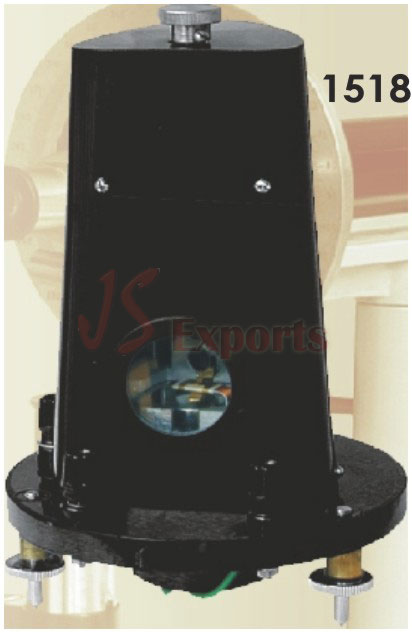

BALLISTIC GALVANOMETER   (1518)

For measurement of small quantities of electrical charge. Reflecting mirror type model. A link high resistance is provided to make the galvanometer periodic. With Leveling screws.



ELECTROMAGNETIC KIT   (1519)

Comprises 8 anisotropic alloy magnets, 8 anisotropic ceramic ferrite magnets, 4 steel magnet-yokes, 6 plotting compasses, 4 hardboard formers for compasses, 1 bottle iron filings, 4 iron filing dispensers, 4 each double C-cores, clip for C-cores, aluminium rings, split aluminum rings, 4 each support bases, armatures with axle-tubes, aluminium axle-rods, 8 split pins, 16 rivets, 1 length latex rubber tubing, 4 each formers for coils, reels cellulose tape, reels copper wire, 4 each sheets white pasteboard, plain postcards, reels white cotton, 4 each carbon resistors 100 ohms, 10 ohms, 10 flash lamp bulbs, 5 neon bulbs, 8 MES bulb holder, wood clamp and wood block.

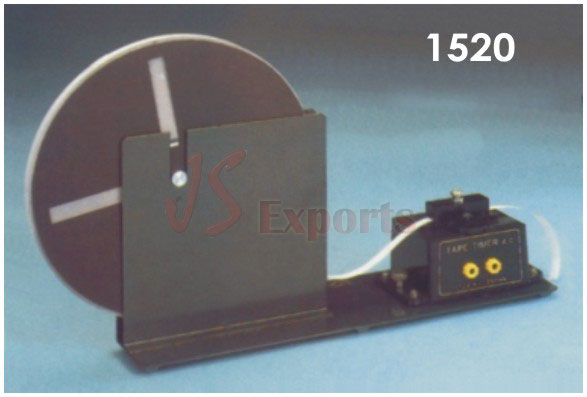

TICKER TAPE TIMER   (1520)

It comprises an electromagnet with spring loaded armature. Guides for paper tape are provided. Dotting screw working on electromagnet marks the paper tape running under a carbon disc. Supplied with paper roll. AC or DC.
Optional: Stand



TICKER TAPE TIMER (AC 50-60 Hz)   (1521)

An improved rugged model providing fixed frequency of 50 dots per second, operating on 5-12 volts AC. Design is such that there are no parts to adjust loose or to wear out. Base is heavy metal with rubber feet so that clamping is not necessary. The tape platform is adjustable so that number of tracks may be made on one tape and carbon disc is efficiently used. Input by 4mm socket terminals. Dimensions :175 x 550 x 55mm approx. Weight : 550 gm approx.

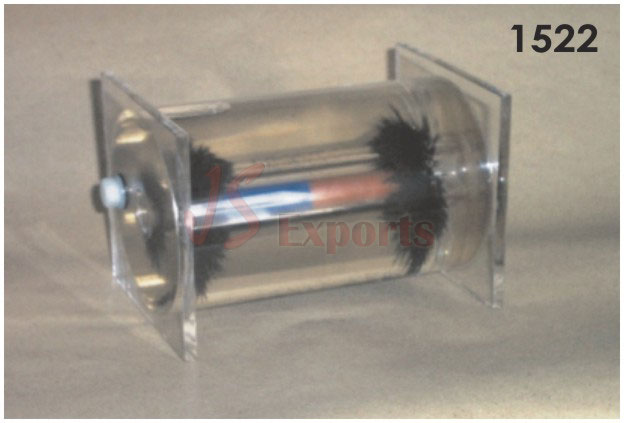

MAGNET FIELD TUBE   (1522)

Ideal for 3-D demonstrations of magnetic fields. Constructed of a sealed round plastic viewing tube with 1.3 oz of iron filings encased and designed with a half inch diameter hole through the center for the super strong alnico cylindrical magnet. Size: 4” L X 3” in diameter.

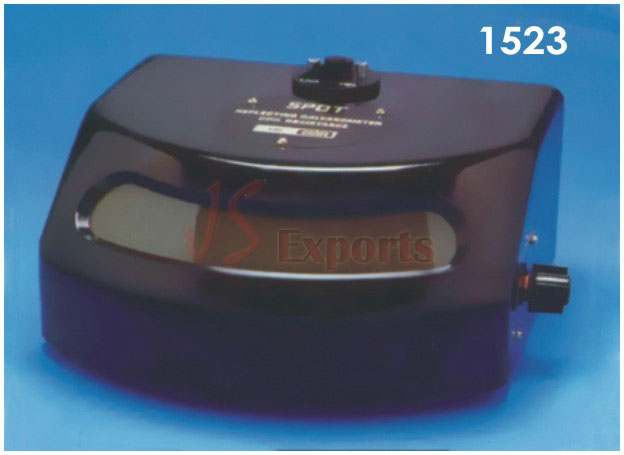

SPOT REFLECTING GALVANOMETER   (1523)

Suitable for industrial Kelvin Double Bridge and Senior Kelvin Double Bridge. -8 Galvanometer resistance 125 ohms normal, sensivity is 5x10 Amp. per mm scale -6 division or 6.25x10 volts per mm scale division, time period 2 seconds, critical damping resistance 1000 ohms and working voltage is 230Volts, AC 50Hz.



BICYCLE DYNAMO   (1524)

A cycle dynamo on a wooden base 200x115x12mm. and provided with two sets of gears driven by a hand crank for fast or slow rotation. Two 4mm socket terminals are provided for the dynamo output, connected in parallel with an M.E.S. lamp holder and 2.5V bulb.

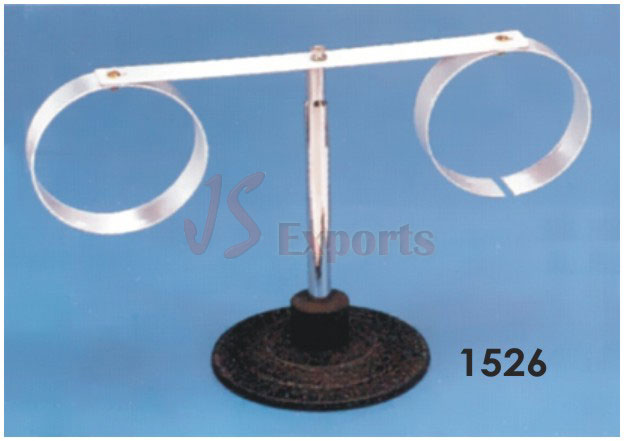

LENZ’S LAW APPARATUS   (1526)

Consists of 2 metal rings connected by an aluminum beam that can rotate freely on a support. One of the rings is a closed loop; the other has an opening for comparison. When a bar magnet moves into or out of the loop, the magnetic flux will change. According to Lenz’s law, a current will be induced in the loop to oppose the change. Students can verify the law by analyzing the movement of the loop.


IRONCLAD ELECTROMAGNET   (1527)

In 1820 Hans Christian Oersted discovered that electric currents produce magnetic fields-electromagnetism. Study electromagnetism by observing the effect of using multiple batteries to change Voltage and Amperage and how this relates to magnetic field. Experiments with lifting capacity and explore user for the electromagnet. Requires 4 batteries (not included).



FERROFLUIDIC ADVENTURE SCIENCE KIT   (1528)

Explore the science of magnetism with an amazing substance known as ferro-fluid. Visualize magnetic field lines and lines of force in 3 dimensions. This Kit
-to be used by students working in groups of 4 or as a teacher demonstration-contain all materials necessary to perform experiments about magnetic lines of force around permanent and electromagnets, magnetic shielding, floating pennies and other objects, by the variable density properties of a ferro-fluid in a magnetic field. Through these activities students learn where ferrofluids are used in objects they use every day. This kit can also be used to show students how to construct artistic 3-D magnetic structures.Kit includes:
 MSDS sheets, 2-ml transfer pipette, power ring magnets, sealed display
