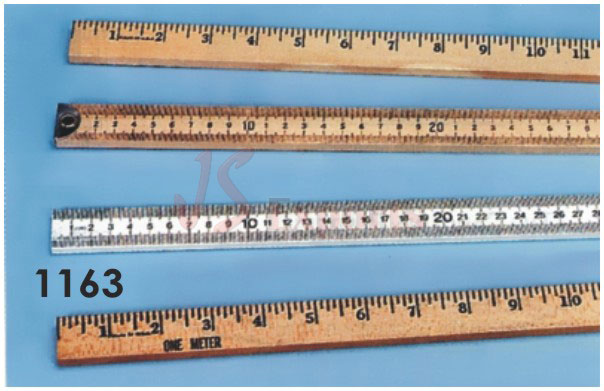

RULE, HARDWOOD (1163)
With two beveled edges, 300mm long, graduated in cm, mm & 4ths, 8ths, 10ths, 12ths and
16ths of inch.
|
|
|
|
|
|

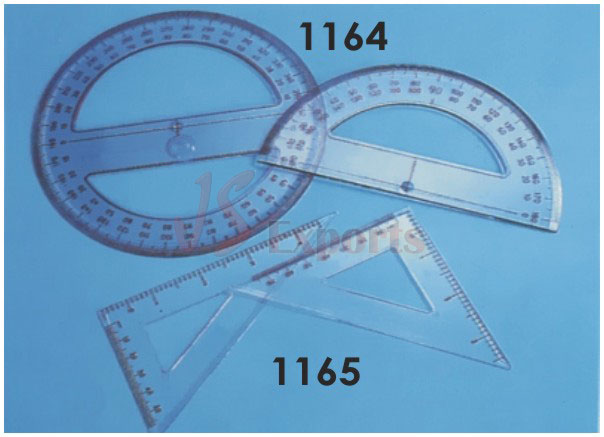

PROTRACTORS (1164)
Plastic, divided in full degrees and calibrated at each 10º.
(a) Circular Protectors
(360º)
(b) Half-Circle Protector
(180º)
|
|
|
|
|
|
COMBINATION SQUARE SETS (1165)
Hardened and ground square heads, centre heads and adjustable protector. Stainless
Steel rule with engraved graduations. Range 360 degrees, 4 items in
set.
|
|
|
|
|
VERNIER CALIPER (1166)
Plated steel, Columbus type calliper enabling the user to read either inside, outside or depth
measurements. With dual scape 0-12 cm x 0.1 mm. Imperial scale graduated to 5 x 1/128 inches provided with thumb wheel for
easy motion of jaws, in plastic case.
|
|
|
|
|
|

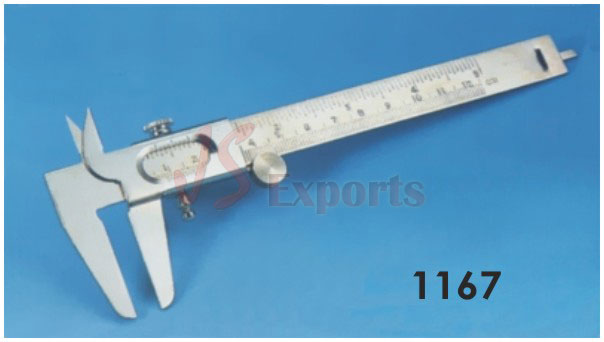

VERNIER CALIPER (1167)
IME type , plated steel with dual scale 0-15 cm x 0.1mm, and 6x1/28 inches, provided
with
thumb movement for easy motion of jaws, in velvet lined box/plastic
case.
|
|
|
|
|
|
OUTSIDE MICROMETER (1168)
Standard workshop model outside micrometer according to DIN 863. The micrometer has a
forged steel with insulated grip and is tapered for easier access to difficult areas. The instrument has a satin-chrome scale
graduated in 0.01mm divisions and also features a tungsten carbide measuring face with constant force ratches as well as a
ratchet clutch. The micrometer comes packed in a plastic/wood box with standards and adjusting key.
| Range | Scale | | (a) | 0 -
25mm | 0.01mm | | (a) | 25-50mm | 0.01mm | | (a) | 50-75mm | 0.01mm | | (a) | 75-100mm | 0.01mm |
|
|
|
|
|
|

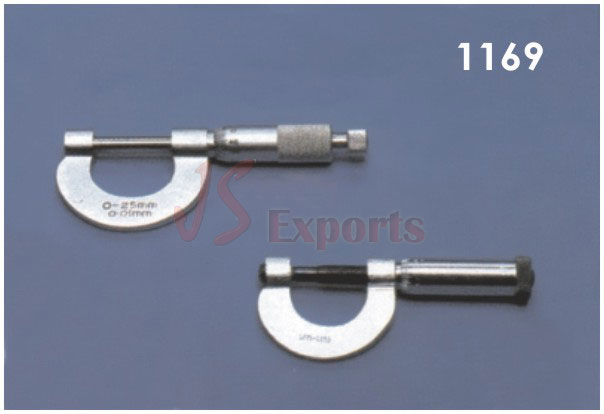

MICROMETER SCREW GAUGE (1169)
Made of nickel plated brass, with ratchet top, accurately machined stainless steel rod.
Range 0-25 x 0.01mm. Supplied in velvet/plastic
case.
|
|
|
|
|
MICROMETER SCREW GAUGE (1170)
As above, but with steel rod.
|
|
|
|
|
MICROMETER DIAL GAUGE (1171)
Precision instrument, range 0-10mm x 0.01mm. With lug back and knurled adjustable
bezel.
|
|
|
|
|
|

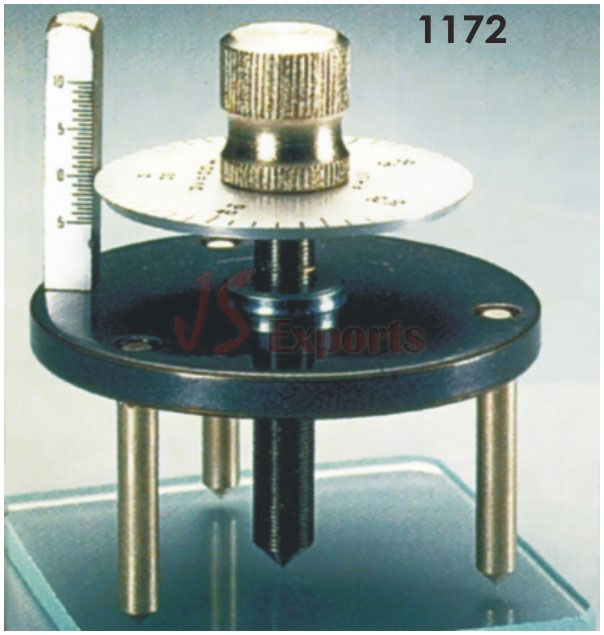

SPHEROMETER (1172)
Brass dial head about 40mm. dia. divided in 100 parts registering on vertical scale 10-0-10mm.
on metal black painted frame. Lead screw and three legs (40mm. separation) are of mild steel. (a) Screw Pitch
1mm. Reading 0.01 mm (b) Screw Pitch 0.5mm. Reading 0.005
mm
|
|
|
|
|
|

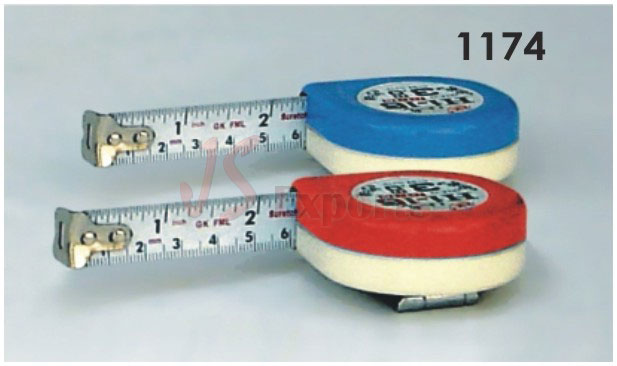

TAPE MEASURES (1174)
Made from heavy gauge zinc
coated steel with pop-up flush winding, handle. Encased in vinyl leatherette case with inner shell of case. | Wooven Metal Wired Tape | A | B | C | D | E | | 10 | 15 | 20 | 30 | 50 | | PVC Coated Fibre Glass
Tape | F | G | H | I | J | | 10 | 15 | 20 | 30 | 50 | | Steel Tape | K | L | M | N | O | | 10 | 15 | 20 | 30 | 50 |
|
|
|
|
|
|

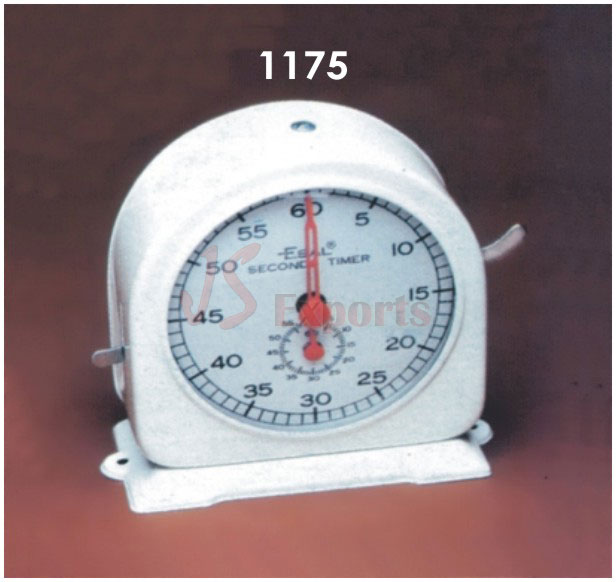

TIMERS, STOPWATCH TYPE (1175)
Luminous two hands, indicating 60 minutes and seconds. Dial 9cm
diameter.
|
|
|
|
|
|

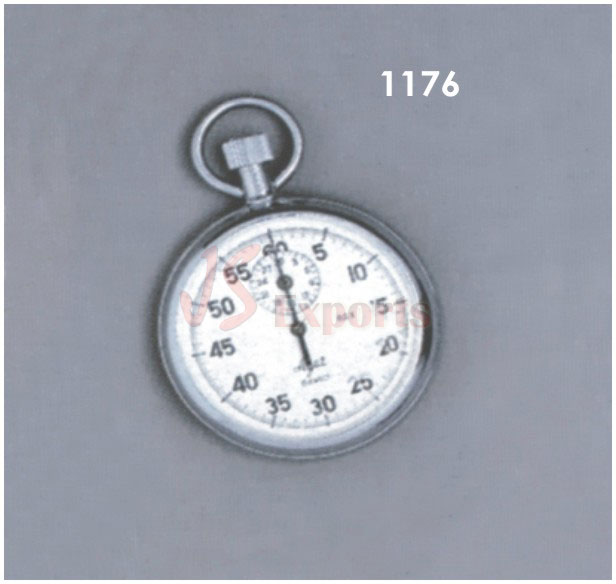

STOP WATCH (1176)
Chrome plated steel case, non
rusting, dust and damp proof. 7-jeweled lever movement bold figures, white dial and black steel handle. With start, stop and
reset arrangement. a.1/5th seconds 30 minutes
b.1/10th seconds 60
minutes
|
|
|
|
|
|

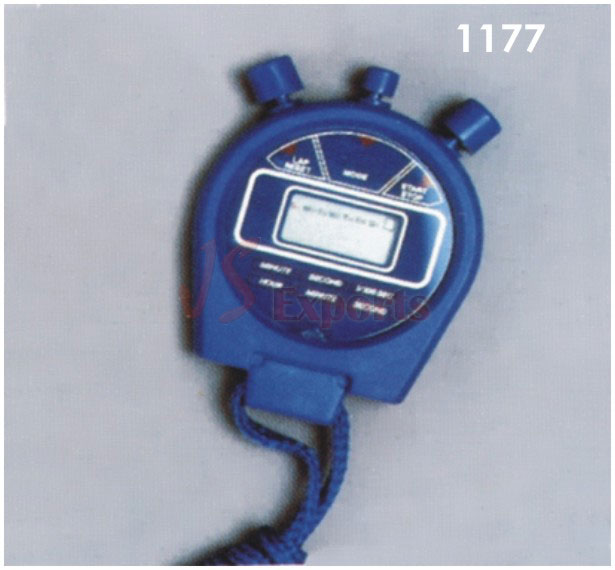

STOP WATCH, DIGITAL ELECTRONIC (1177)
With rollover and continuous timing. Event/time out
timing.
|
|
|
|
