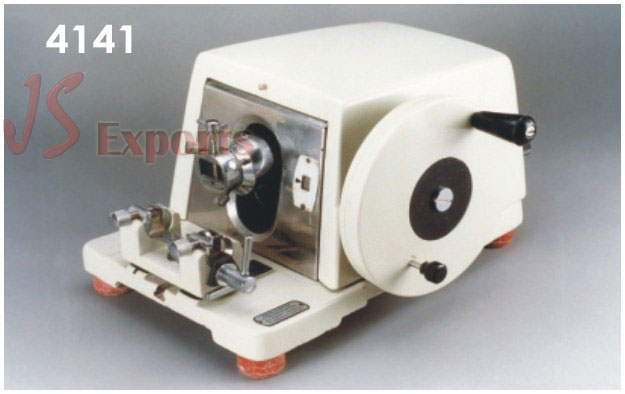

A heavy base with hinged cover for protecting the interior mechanism, and
knife holder. With every complete revolution of the drive wheel, the feed panel engage the teeth of rachet wheel which
advances the object holder through cone and inclined plane mechanism, tissue sections can be cut down to even 1 micron. A
safety device automatically disengages the feed mechanism at the end. Feed indicator is in front and feed setting is at the
back of Microtome which sets 1 to 50 micron. A razor 120mm made from High carbon steel and tested for Micro structure is
supplied with instrument. There is an arrangement to tilt angle of the razor adjustable up to 30º on a reference scale.
TECHNICAL FEATURES :
Feed adjustment: 1-50 Micron (in step of 1 micro)
Total feed excursion : 28mm opening
of object clamp.
Hall and flange type : 37 x 25mm,
Overall dimensions : 400 x 250 x 175mm
Weight: 25 Kg.
