TRINOCULAR STEREO ZOOM MICROSCOPE

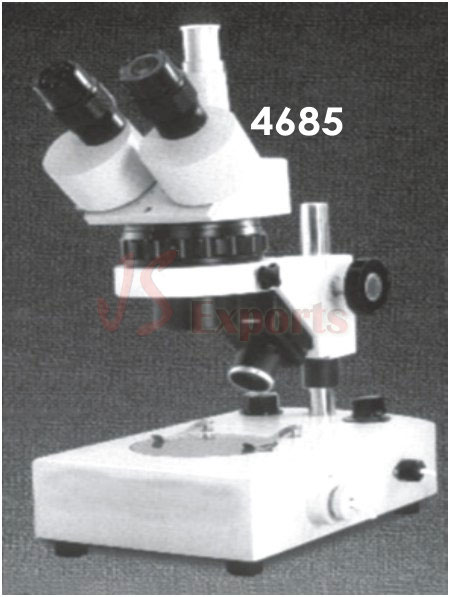

TRINOCULAR STEREO ZOOM MICROSCOPE (4685)
Standard Magnification from 10x to 50x (zooming ratio 1:5) High point Wide Field Eyepiece HWF 10x in pair & WF 10X. Vertical Photo tube is provided for easy compatibility with CCTV or micro photography System. Rack and pinion focusing system, single stroke up to 50mm. Incident and transmitted illumination 20W, Halogen Bulbs. Crisp, erect images with high resolution & stereoscopic effect. 80mm working distance regardless of magnification. Inter-pupillary distance adjustment from 54mm to 75mm. Binocular tube with an inclination of 45 for ease of observation. Once in focus, image remains sharp through the whole range. Dioptic adjustment with a range 5 diopters are available. Trinocular Zoom Microscope body can be rotated in full 360 and locked in any desired position. The holder and focussing block mounted on pole type base, provide both transmitted and oblique incident illumination, each source employing a 6V/20x halogen bulb, operated on 220V or 110V mains. Transformer is built-in the base with a selector switch which allows them to be used separately or simultaneously. Two stage plates, each measuring 90mm in diameter, a frosted glass plate and the other having one side white, another black, are provided as standard. Packed in plywood storing cabinet having lock & key complete with vinyl cover, dust cover, cleaning kit & operating manual.
Other advanced models of research quality stereo microscopes are also available.
