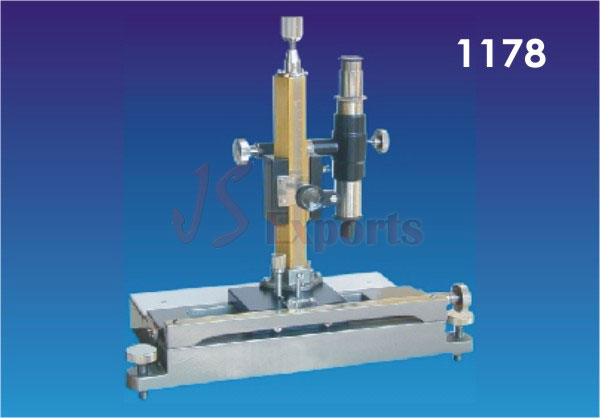

VERNIER MICROSCOPE (TRAVELING MICROSCOPE)

VERNIER MICROSCOPE (TRAVELING MICROSCOPE) (1178)

Horizontal and vertical scales of stainless steel. The cast iron base is fitted with leveling screws with the top duly machined over which slides a metal carriage. Slide can be clamped at any position by means of clamping screw. Fine adjustment for final reading is with a micrometer screw. A vertical slide operating in a similar way is fitted on the horizontal carriage. The microscope with rack and pinion is fitted on this vertical carriage and can be clamped in a vertical or horizontal position. Stage for placing objects for measurement is fitted with perspex plate. Achromatic lenses have been used. Slides travel 165 mm horizontally and 140mm vertically. Scales are accurately divided. Vernier reading 0.02 or 0.001mm. The unit is packed in wooden polished case.

Qty :
